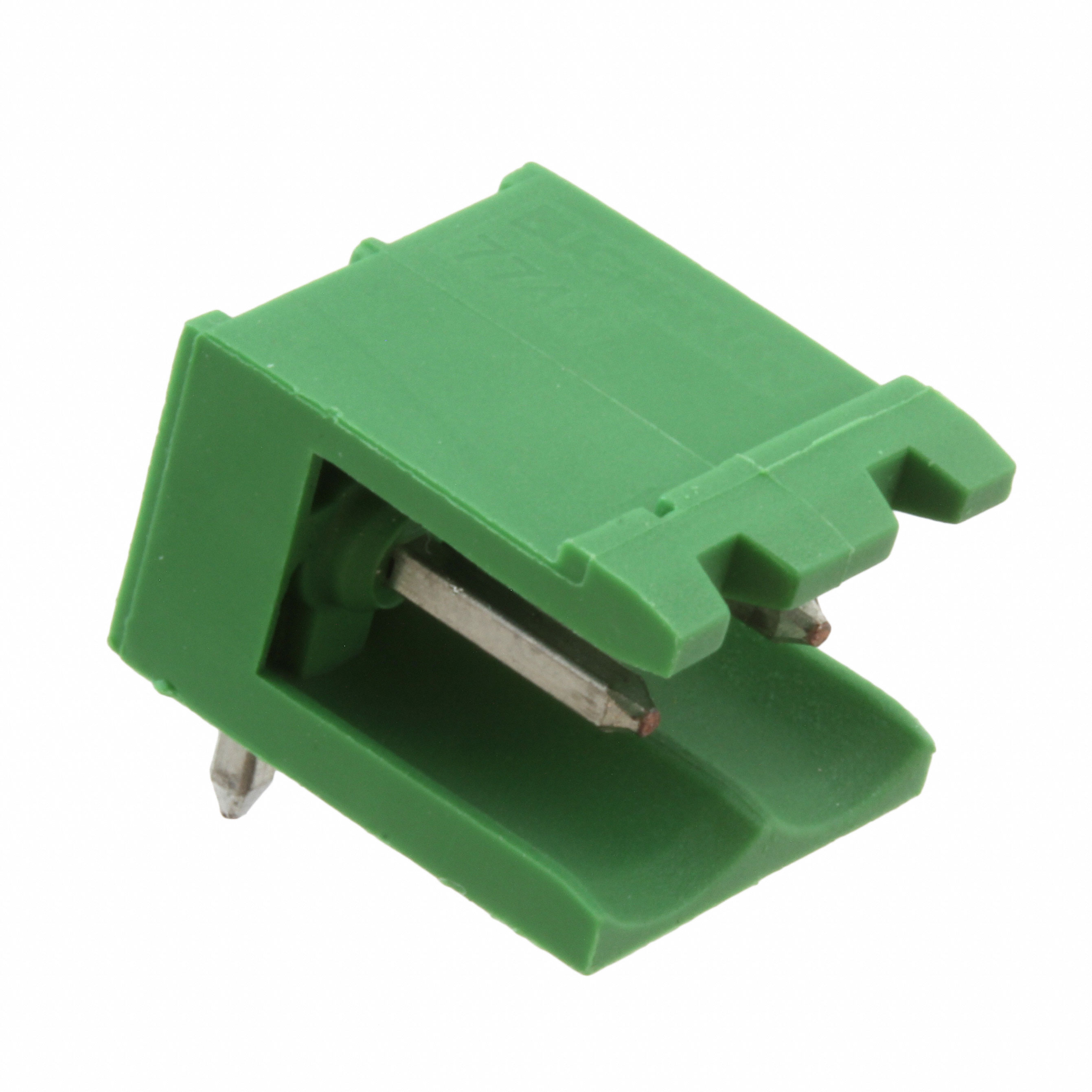

282815-2
Or copy the link below:
- Mfr.Part #
- 282815-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 2POS 90DEG 5.08MM
- Stock
- 461
- In Stock ：
- 461
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Flammability Rating :
- UL94 V-0
- Number of Poles :
- 2
- ECCN Code :
- EAR99
- Contact Mating Finish :
- Tin
- Packaging :
- Bulk
- Published :
- 1998
- Length :
- 10.16mm
- Number of Rows :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Header Orientation :
- 90°, Right Angle
- Fastening Type :
- Ramp
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Lead Free :
- Lead Free
- Shrouding :
- yes
- Number of Levels :
- 1
- RoHS Status :
- RoHS Compliant
- Pitch :
- 0.200 5.08mm
- Number of Positions :
- 2
- Mount :
- Through Hole
- Feature :
- Side Stacking
- Factory Lead Time :
- 12 Weeks
- Fastening Method :
- Connector
- HTS Code :
- 8536.69.40.40
- Voltage - Rated :
- 300V
- Max Voltage Rating (AC) :
- 300V
- ELV :
- Compliant
- Insulation Height :
- 0.329 8.36mm
- Voltage :
- 300V
- Number of Decks :
- 1
- Voltage - Rated AC :
- 300V
- Orientation :
- RIGHT ANGLE
- Length - Tail :
- 3.5mm
- Connector Type :
- Header
- Max Current Rating :
- 15A
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Series :
- Buchanan
- Contact Tail Length :
- 0.138 3.50mm
- Current Rating :
- 15A
- Termination Style :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Number of Ways :
- 22
- Additional Feature :
- PA6-6, 94V-0
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Through Hole
- Depth :
- 12mm
- Radiation Hardening :
- No
- Operating Temperature :
- -40°C~110°C
- Current :
- 15A
- Color :
- Green
- Safety Approval :
- UL
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Datasheets
- 282815-2
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282815-2 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Buchanan Series.Moreover, there are a number of other features, including PA6-6, 94V-0, to name just a few.In many ways, its Side Stacking feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -40°C~110°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (2 Side) products.
282815-2 Features
Buchanan series
282815-2 Applications
There are a lot of TE Connectivity AMP Connectors
282815-2 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
