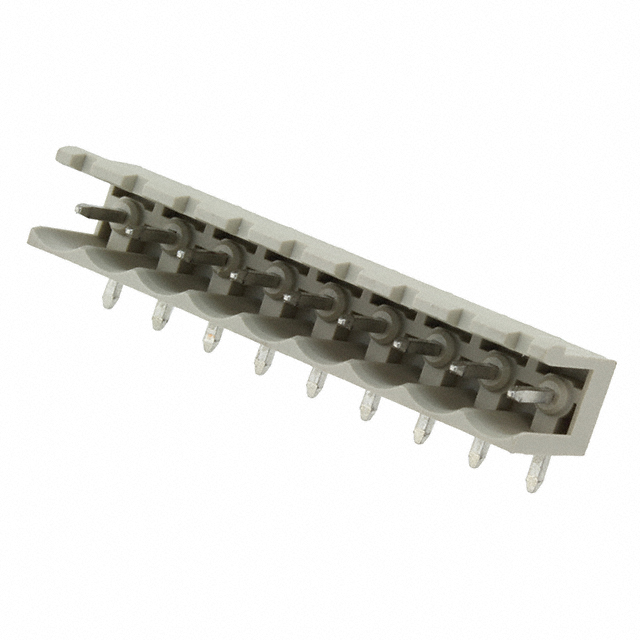

282812-9
Or copy the link below:
- Mfr.Part #
- 282812-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 9POS 90DEG 5MM
- Stock
- 2,268
- In Stock ：
- 2,268
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Number of Decks :
- 1
- Radiation Hardening :
- No
- Contact Material :
- COPPER ALLOY
- Depth :
- 12mm
- ELV :
- Compliant
- Length - Tail :
- 3.5mm
- Series :
- Buchanan
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Contact Mating Finish :
- Tin
- Number of Positions :
- 9
- Number of Levels :
- 1
- Voltage :
- 300V
- Voltage - Rated AC :
- 300V
- Mounting Type :
- Through Hole
- Orientation :
- RIGHT ANGLE
- Safety Approval :
- UL
- Factory Lead Time :
- 12 Weeks
- Published :
- 2007
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Termination Style :
- Solder
- Current :
- 15A
- Insulation Height :
- 0.329 8.36mm
- Connector Type :
- Header
- Operating Temperature :
- -40°C~110°C
- Number of Ways :
- 19
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Feature :
- Side Stacking
- Number of Rows :
- 1
- Max Voltage Rating (AC) :
- 300V
- Contact Tail Length :
- 0.138 3.50mm
- Length :
- 45mm
- Flammability Rating :
- UL94 V-0
- Color :
- Green
- Fastening Method :
- Connector
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 300V
- Number of Positions Per Level :
- 9
- Lifecycle Status :
- ACTIVE (Last Updated: 2 weeks ago)
- Packaging :
- Bulk
- Current Rating :
- 15A
- Max Current Rating :
- 15A
- Pitch :
- 0.197 5.00mm
- Header Orientation :
- 90°, Right Angle
- Datasheets
- 282812-9
Bulk 0.197 5.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282812-9 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A number of features make the Side Stacking feature more powerful.Through Hole represents the mounting point for the part.-40°C~110°C Operating Temperature is the default operating temperature for the device.As with other Header, Male Pins, Shrouded (2 Side) products, this part also offers a wide range of benefits.
282812-9 Features
Buchanan series
282812-9 Applications
There are a lot of TE Connectivity AMP Connectors
282812-9 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
