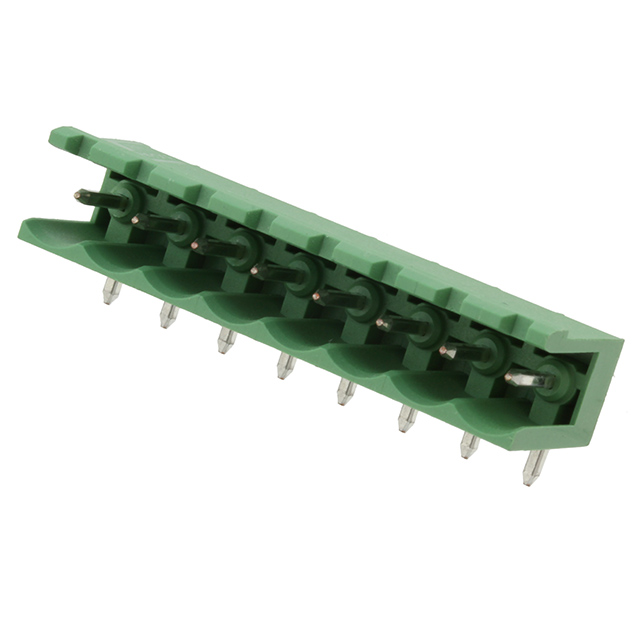

282812-8
Or copy the link below:
- Mfr.Part #
- 282812-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 8POS 90DEG 5MM
- Stock
- 36,962
- In Stock ：
- 36,962
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Factory Lead Time :
- 12 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Max Voltage Rating (AC) :
- 300V
- Voltage - Rated :
- 300V
- ECCN Code :
- EAR99
- Orientation :
- RIGHT ANGLE
- ELV :
- Compliant
- Operating Temperature :
- -40°C~110°C
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Safety Approval :
- UL
- Number of Rows :
- 1
- Contact Material :
- COPPER ALLOY
- Packaging :
- Bulk
- Connector Type :
- Header
- Number of Positions Per Level :
- 8
- Max Current Rating :
- 15A
- Voltage :
- 300V
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Feature :
- Side Stacking
- RoHS Status :
- RoHS Compliant
- Contact Tail Length :
- 0.138 3.50mm
- Flammability Rating :
- UL94 V-0
- Length - Tail :
- 3.5mm
- Published :
- 2005
- Number of Decks :
- 1
- Contact Mating Finish :
- Tin
- Number of Levels :
- 1
- Number of Ways :
- 18
- Fastening Method :
- Connector
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.329 8.36mm
- Series :
- Buchanan
- Header Orientation :
- 90°, Right Angle
- Termination Style :
- Solder
- Current :
- 15A
- Color :
- Green
- Number of Positions :
- 8
- Pitch :
- 0.197 5.00mm
- Mount :
- Through Hole
- Datasheets
- 282812-8
Bulk 0.197 5.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282812-8 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Buchanan Series.In many ways, its Side Stacking feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -40°C~110°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (2 Side) products.
282812-8 Features
Buchanan series
282812-8 Applications
There are a lot of TE Connectivity AMP Connectors
282812-8 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
