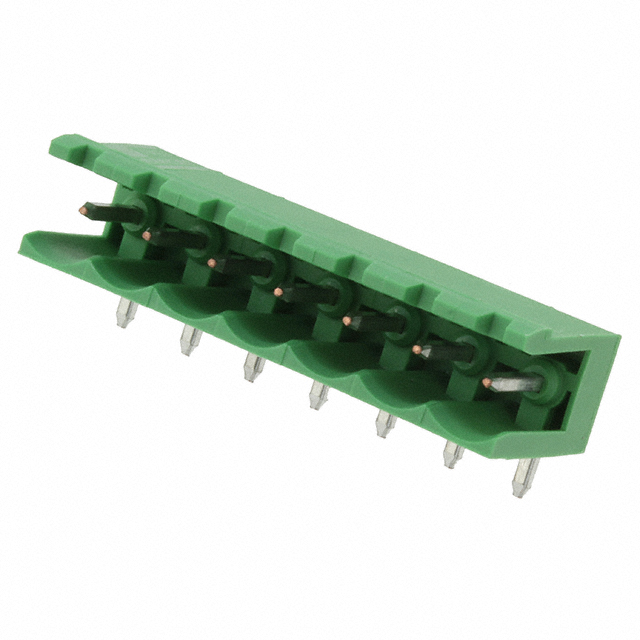

282812-7
Or copy the link below:
- Mfr.Part #
- 282812-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 7POS 90DEG 5MM
- Stock
- 19,690
- In Stock ：
- 19,690
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Number of Ways :
- 17
- Mounting Type :
- Through Hole
- Pitch :
- 0.197 5.00mm
- HTS Code :
- 8536.69.40.40
- Termination Style :
- Solder
- Number of Levels :
- 1
- Color :
- Green
- Current :
- 15A
- Max Current Rating :
- 15A
- Lead Free :
- Lead Free
- Insulation Height :
- 0.329 8.36mm
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 12 Weeks
- Material Flammability Rating :
- UL94 V-0
- Fastening Method :
- Connector
- Series :
- Buchanan
- Safety Approval :
- UL
- Operating Temperature :
- -40°C~110°C
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Length - Tail :
- 3.5mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Voltage - Rated AC :
- 300V
- Header Orientation :
- 90°, Right Angle
- Contact Material :
- COPPER ALLOY
- RoHS Status :
- RoHS Compliant
- Contact Mating Finish :
- Tin
- Number of Decks :
- 1
- Connector Type :
- Header
- ECCN Code :
- EAR99
- Number of Rows :
- 1
- Voltage :
- 300V
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Mount :
- Through Hole
- Published :
- 2007
- Feature :
- Side Stacking
- Contact Tail Length :
- 0.138 3.50mm
- Radiation Hardening :
- No
- ELV :
- Compliant
- Number of Positions Per Level :
- 7
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Voltage - Rated :
- 300V
- Current Rating :
- 15A
- Datasheets
- 282812-7
Bulk 0.197 5.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282812-7 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Buchanan Series.In many ways, Side Stacking makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -40°C~110°C.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (2 Side) line.
282812-7 Features
Buchanan series
282812-7 Applications
There are a lot of TE Connectivity AMP Connectors
282812-7 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
