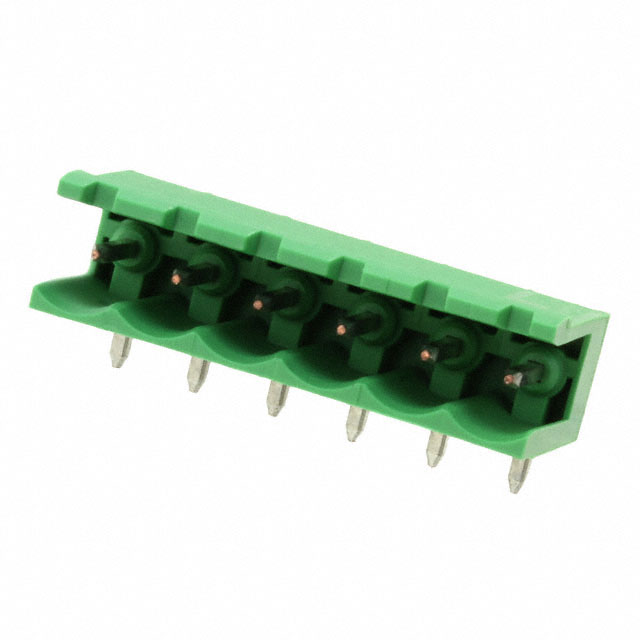

282812-6
Or copy the link below:
- Mfr.Part #
- 282812-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 6POS 90DEG 5MM
- Stock
- 32,407
- In Stock ：
- 32,407
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Max Voltage Rating (AC) :
- 300V
- Length - Tail :
- 3.5mm
- Series :
- Buchanan
- Connector Type :
- Header
- Header Orientation :
- 90°, Right Angle
- Voltage - Rated :
- 300V
- Contact Mating Finish :
- Tin
- Number of Positions Per Level :
- 6
- Pitch :
- 0.197 5.00mm
- RoHS Status :
- RoHS Compliant
- Current :
- 15A
- Insulation Height :
- 0.329 8.36mm
- Fastening Method :
- Connector
- Feature :
- Side Stacking
- Radiation Hardening :
- No
- Number of Decks :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- ECCN Code :
- EAR99
- Color :
- Green
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Length :
- 30mm
- Contact Material :
- COPPER ALLOY
- Lead Free :
- Lead Free
- Packaging :
- Bulk
- Contact Tail Length :
- 0.138 3.50mm
- ELV :
- Compliant
- Safety Approval :
- UL
- Orientation :
- RIGHT ANGLE
- Max Current Rating :
- 15A
- Number of Levels :
- 1
- Number of Positions :
- 6
- Voltage - Rated AC :
- 300V
- Mount :
- Through Hole
- Number of Rows :
- 1
- Number of Ways :
- 16
- Operating Temperature :
- -40°C~110°C
- Factory Lead Time :
- 12 Weeks
- Depth :
- 12mm
- Current Rating :
- 15A
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Termination Style :
- Solder
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Published :
- 2007
- Voltage :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 282812-6
Bulk 0.197 5.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282812-6 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Buchanan Series.In many ways, its Side Stacking feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -40°C~110°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (2 Side) products.
282812-6 Features
Buchanan series
282812-6 Applications
There are a lot of TE Connectivity AMP Connectors
282812-6 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
