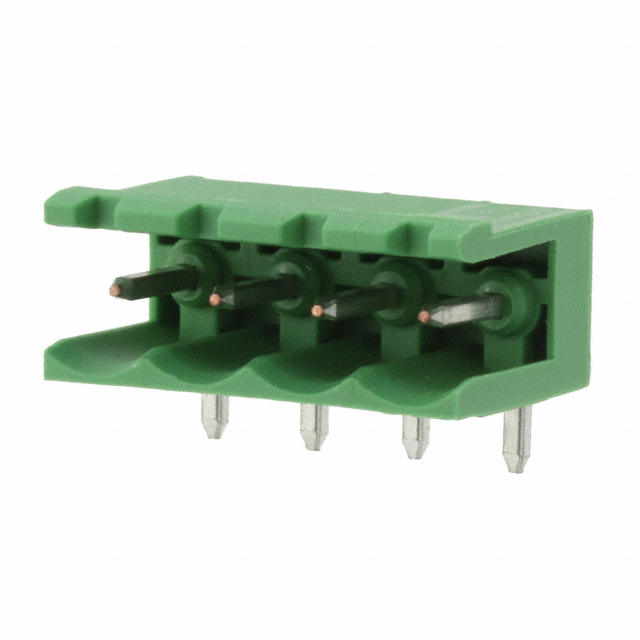

282812-4
Or copy the link below:
- Mfr.Part #
- 282812-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 4POS 90DEG 5MM
- Stock
- 580
- In Stock ：
- 580
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Current :
- 15A
- Depth :
- 12mm
- Max Current Rating :
- 15A
- Color :
- Green
- Length - Tail :
- 3.5mm
- Voltage - Rated AC :
- 300V
- Contact Mating Finish :
- Tin
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Operating Temperature :
- -40°C~110°C
- Voltage - Rated :
- 300V
- Mount :
- Through Hole
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination Style :
- Solder
- Voltage :
- 300V
- Factory Lead Time :
- 12 Weeks
- Header Orientation :
- 90°, Right Angle
- Connector Type :
- Header
- Insulation Height :
- 0.329 8.36mm
- Safety Approval :
- UL
- Number of Decks :
- 1
- ELV :
- Compliant
- Length :
- 20mm
- Number of Levels :
- 1
- Number of Positions Per Level :
- 4
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Number of Ways :
- 24
- Current Rating :
- 15A
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Fastening Method :
- Connector
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 1
- Pitch :
- 0.197 5.00mm
- Mounting Type :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Series :
- Buchanan
- Contact Material :
- COPPER ALLOY
- Feature :
- Side Stacking
- Published :
- 2007
- Radiation Hardening :
- No
- Number of Positions :
- 4
- ECCN Code :
- EAR99
- Max Voltage Rating (AC) :
- 300V
- RoHS Status :
- RoHS Compliant
- Orientation :
- RIGHT ANGLE
- Contact Tail Length :
- 0.138 3.50mm
- Datasheets
- 282812-4
Bulk 0.197 5.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282812-4 Overview
A Header packaging is included.It's mounted Through Hole.We use a Bulk case to package the product.It's from the Buchanan Series.In many ways, its Side Stacking feature makes it more powerful.It's mounted by Through Hole.-40°C~110°C Operating Temperature is what the device runs at.The benefts of this part are similar to those of other Header, Male Pins, Shrouded (2 Side) products.
282812-4 Features
Buchanan series
282812-4 Applications
There are a lot of TE Connectivity AMP Connectors
282812-4 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
