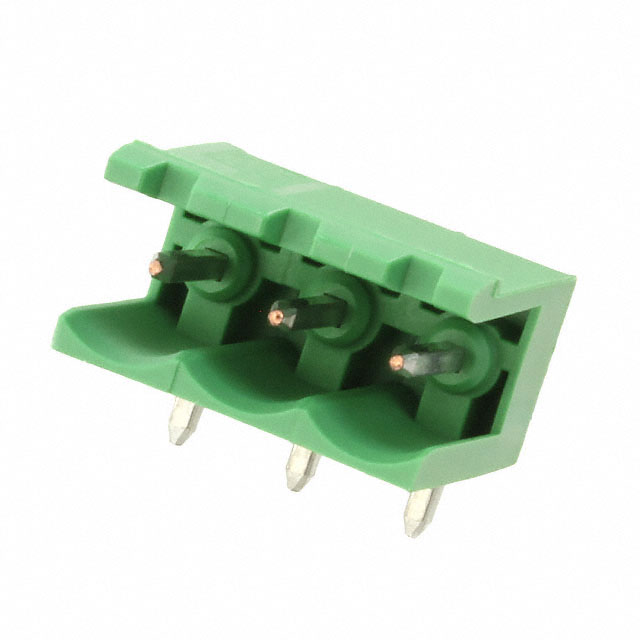

282812-3
Or copy the link below:
- Mfr.Part #
- 282812-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 3POS 90DEG 5MM
- Stock
- 3,190
- In Stock ：
- 3,190
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- ECCN Code :
- EAR99
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Flammability Rating :
- UL94 V-0
- Termination Style :
- Solder
- Number of Decks :
- 1
- Number of Ways :
- 13
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Side Stacking
- Mounting Type :
- Through Hole
- Voltage - Rated AC :
- 300V
- Max Current Rating :
- 15A
- Pitch :
- 0.197 5.00mm
- Safety Approval :
- UL
- Published :
- 2007
- Contact Tail Length :
- 0.138 3.50mm
- Operating Temperature :
- -40°C~110°C
- Number of Positions Per Level :
- 3
- Number of Levels :
- 1
- Header Orientation :
- 90°, Right Angle
- Voltage - Rated :
- 300V
- Factory Lead Time :
- 12 Weeks
- Connector Type :
- Header
- Radiation Hardening :
- No
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Contact Mating Finish :
- Tin
- RoHS Status :
- RoHS Compliant
- Insulation Height :
- 0.329 8.36mm
- Lead Free :
- Lead Free
- Packaging :
- Bulk
- Contact Material :
- COPPER ALLOY
- Voltage :
- 300V
- Mount :
- Through Hole
- Current :
- 15A
- Fastening Method :
- Connector
- Current Rating :
- 15A
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Rows :
- 1
- Color :
- Green
- Series :
- Buchanan
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Tail :
- 3.5mm
- Datasheets
- 282812-3
Bulk 0.197 5.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282812-3 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Several benefits come from the Side Stacking feature.There is a mounting hole at Through Hole.Devices operate at -40°C~110°C operating temperatures.There are many benefits that this part shares with other Header, Male Pins, Shrouded (2 Side) products as well.
282812-3 Features
Buchanan series
282812-3 Applications
There are a lot of TE Connectivity AMP Connectors
282812-3 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
