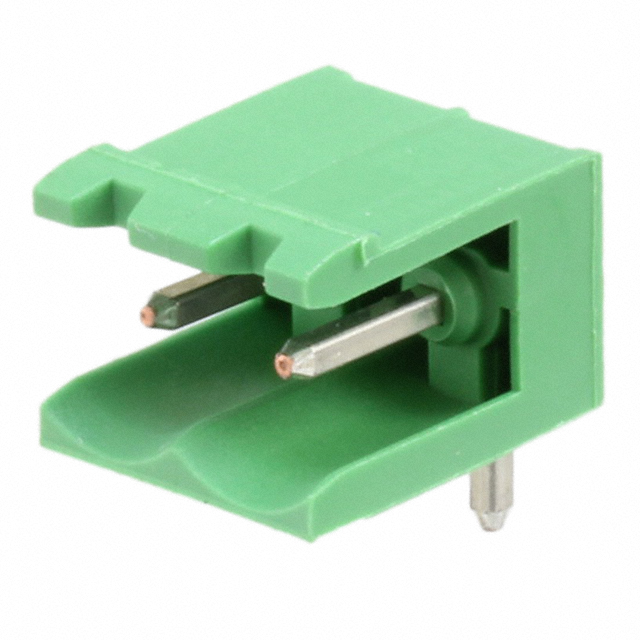

282812-2
Or copy the link below:
- Mfr.Part #
- 282812-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 2POS 90DEG 5MM
- Stock
- 2,160
- In Stock ：
- 2,160
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Depth :
- 12mm
- Number of Decks :
- 1
- RoHS Status :
- RoHS Compliant
- Insulation Height :
- 0.329 8.36mm
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Series :
- Buchanan
- ELV :
- Compliant
- Radiation Hardening :
- No
- Voltage :
- 300V
- Voltage - Rated :
- 300V
- Max Voltage Rating (AC) :
- 300V
- ECCN Code :
- EAR99
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 15A
- Voltage - Rated AC :
- 300V
- Mount :
- Through Hole
- Length :
- 10mm
- Material Flammability Rating :
- UL94 V-0
- Safety Approval :
- UL
- Packaging :
- Bulk
- Length - Tail :
- 3.5mm
- Number of Positions :
- 2
- Number of Poles :
- 2
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Termination Style :
- Solder
- Connector Type :
- Header
- HTS Code :
- 8536.69.40.40
- Feature :
- Side Stacking
- Contact Material :
- COPPER ALLOY
- Current :
- 15A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- RIGHT ANGLE
- Header Orientation :
- 90°, Right Angle
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Max Current Rating :
- 15A
- Operating Temperature :
- -40°C~110°C
- Number of Rows :
- 1
- Published :
- 2007
- Fastening Method :
- Connector
- Pitch :
- 0.197 5.00mm
- Color :
- Green
- Contact Mating Finish :
- Tin
- Lead Free :
- Lead Free
- Mounting Type :
- Through Hole
- Number of Levels :
- 1
- Factory Lead Time :
- 21 Weeks
- Number of Ways :
- 22
- Contact Tail Length :
- 0.138 3.50mm
- Datasheets
- 282812-2
Bulk 0.197 5.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282812-2 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Buchanan Series, it can be found in this category.With its Side Stacking feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -40°C~110°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (2 Side) products.
282812-2 Features
Buchanan series
282812-2 Applications
There are a lot of TE Connectivity AMP Connectors
282812-2 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
