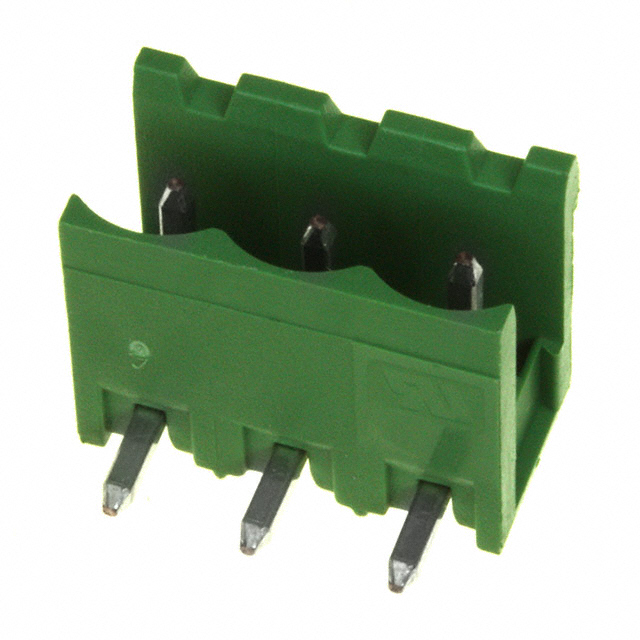

282811-3
Or copy the link below:
- Mfr.Part #
- 282811-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 3POS 90DEG 5MM
- Stock
- 1,670
- In Stock ：
- 1,670
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Contact Tail Length :
- 0.138 3.50mm
- Length :
- 15.5mm
- Mount :
- Through Hole
- Factory Lead Time :
- 12 Weeks
- Connector Type :
- Header
- Number of Rows :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Mating Finish :
- Tin
- Number of Levels :
- 1
- Contact Plating :
- Tin
- Header Orientation :
- 90°, Right Angle
- Positions Per Level :
- 3
- Contact Material :
- COPPER ALLOY
- Voltage - UL :
- 300V
- Packaging :
- Bulk
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 15A
- Shrouding :
- yes
- Length - Tail :
- 3.5mm
- Series :
- Buchanan
- Voltage :
- 300V
- Number of Positions :
- 3
- Operating Temperature :
- -40°C~110°C
- Current :
- 15A
- ELV :
- Compliant
- Termination :
- Solder
- Feature :
- Interlocking (Side)
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Voltage - Rated AC :
- 300V
- Current - UL :
- 15A
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Published :
- 2005
- Mounting Type :
- Through Hole
- Max Voltage Rating (AC) :
- 300V
- Number of Contacts :
- 3
- Voltage - Rated :
- 300V
- Termination Style :
- Solder
- Pitch :
- 0.197 5.00mm
- Max Current Rating :
- 15A
- Depth :
- 12mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Per Level :
- 3
- Insulation Height :
- 0.329 8.36mm
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Housing Color :
- Green
- Color :
- Green
- Radiation Hardening :
- No
- Datasheets
- 282811-3
Bulk 0.197 5.00mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282811-3 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Buchanan Series of products.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -40°C~110°C Operating Temperature.This part shares lots of benefits with other Header, Male Pins, Shrouded (2 Side) products.
282811-3 Features
Buchanan series
282811-3 Applications
There are a lot of TE Connectivity AMP Connectors
282811-3 Terminal Blocks applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
