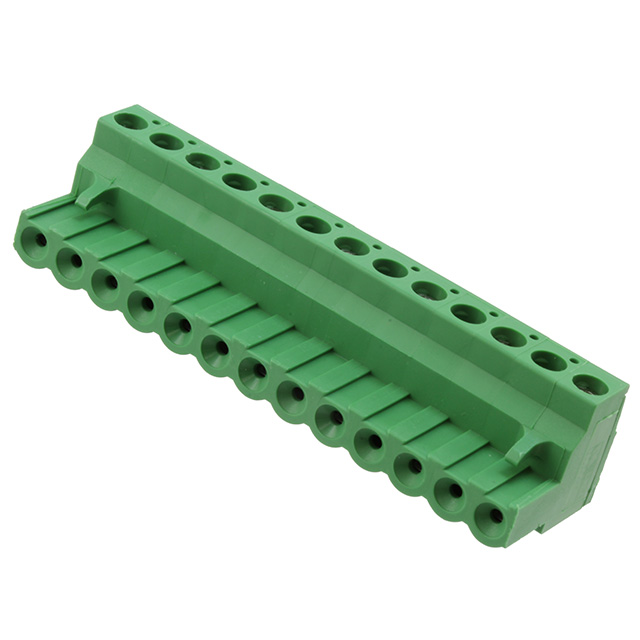

282809-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Wire Gauge (Max) :

30 AWG

Connector Type :

PLUG

Current :

15A

Factory Lead Time :

13 Weeks

Lead Free :

Not Applicable

Contact Mating Finish :

Tin

RoHS Status :

RoHS Compliant

Flammability Rating :

UL94 V-0

Number of Decks :

1

ELV :

Compliant

Published :

2007

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.400 10.16mm

Feature :

Retention Latches (Non-Wire Side)

Packaging :

Bulk

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Mount :

Cable, Free Hanging

Mounting Type :

Free Hanging (In-Line)

ECCN Code :

EAR99

Max Current Rating :

15A

Wire Cross Section :

2.5 mm2

Operating Temperature :

-40°C~110°C

Plug Wire Entry :

180°

Series :

Buchanan

Current Rating :

15A

Material Flammability Rating :

UL94 V-0

Radiation Hardening :

No

Safety Approval :

UL

Insulation Height :

0.610 15.49mm

Type :

Plug, Female Sockets

Termination Style :

Screw - Rising Cage Clamp

Number of Contacts :

7

Wire Gauge or Range - AWG :

12-30 AWG

Termination :

Screw

Voltage - Rated :

600V

Wire Gauge (Min) :

12 AWG

Voltage :

600V

Wire Strip Length :

6-7.5mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Number of Levels :

1

Color :

Green

Screw Size :

M3

Number of Ways :

7

Contact Material :

Phosphor Bronze

HTS Code :

8536.69.40.40

Wire Gauge or Range - mm² :

0.05-3mm2

Orientation :

RIGHT ANGLE

Pbfree Code :

yes
