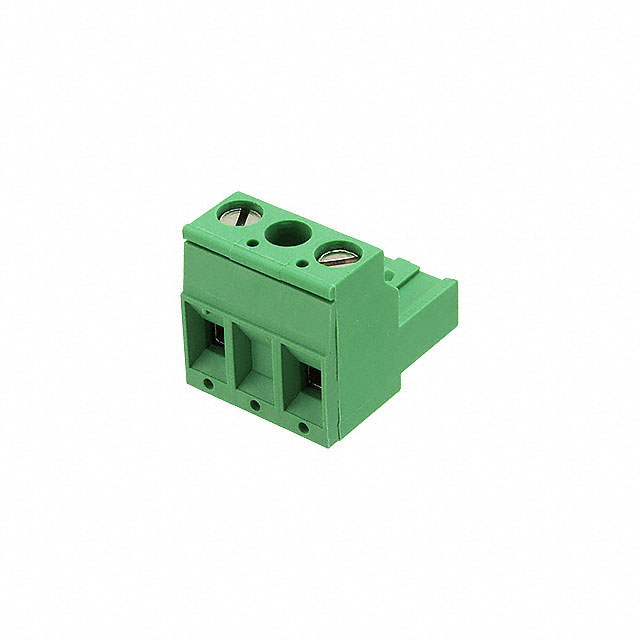

282809-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Max Supply Voltage (AC) :

600V

Operating Temperature :

-40°C~110°C

Safety Approval :

UL

Current Rating :

15A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge (Max) :

30 AWG

Mount :

Cable, Free Hanging

Voltage - Rated :

600V

HTS Code :

8536.69.40.40

Number of Decks :

1

Flammability Rating :

UL94 V-0

Insulation Height :

0.610 15.49mm

Screw Size :

M3

Number of Contacts :

2

Pbfree Code :

yes

Connector Type :

PLUG

Voltage :

600V

Material Flammability Rating :

UL94 V-0

Orientation :

RIGHT ANGLE

Wire Strip Length :

6-7.5mm

Plug Wire Entry :

180°

Type :

Plug, Female Sockets

Published :

2006

Torque - Screw :

0.79 Nm (7.0 Lb-In)

ELV :

Compliant

Wire Gauge or Range - mm² :

0.05-3mm2

Housing Material :

Polyamide (PA66), Nylon 6/6

Lead Free :

Not Applicable

Max Voltage Rating (AC) :

600V

Color :

Green

Number of Levels :

1

Wire Gauge (Min) :

12 AWG

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Wire Gauge or Range - AWG :

12-30 AWG

ECCN Code :

EAR99

RoHS Status :

RoHS Compliant

Length :

15.24mm

Pitch :

0.400 10.16mm

Packaging :

Bulk

Radiation Hardening :

No

Factory Lead Time :

13 Weeks

Feature :

Retention Latches (Non-Wire Side)

Current :

15A

Number of Ways :

2

Depth :

18.4mm

Contact Material :

Phosphor Bronze

Termination Style :

Screw - Rising Cage Clamp

Mounting Type :

Free Hanging (In-Line)

Max Current Rating :

15A

Contact Mating Finish :

Tin

Termination :

Screw

Number of Rows :

1

Series :

Buchanan
