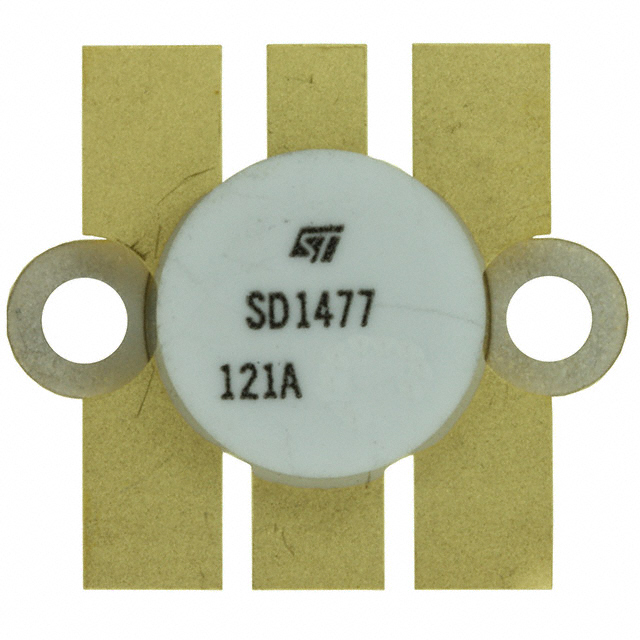

SD1477
Or copy the link below:
- Mfr.Part #
- SD1477
- Manufacturer
- STMicroelectronics
- Package / Case
- M111
- Datasheet
- Download
- Description
- RF TRANS NPN 18V M111
- Stock
- 49,736
- In Stock ：
- 49,736
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- Transistors - Bipolar (BJT) - RF
- Max Power Dissipation :
- 270W
- Qualification Status :
- Not Qualified
- Width :
- 21.97mm
- Current Rating :
- 20A
- Gain :
- 6dB
- Number of Terminations :
- 6
- Transistor Type :
- NPN
- Pin Count :
- 6
- RoHS Status :
- ROHS3 Compliant
- Mount :
- Screw, Surface Mount
- Lead Free :
- Lead Free
- Number of Pins :
- 111
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Collector Emitter Breakdown Voltage :
- 18V
- Mounting Type :
- Surface Mount
- Transistor Application :
- AMPLIFIER
- Number of Elements :
- 1
- Height :
- 7.11mm
- Terminal Form :
- Flat
- JESD-30 Code :
- O-PXFM-F6
- Highest Frequency Band :
- VERY HIGH FREQUENCY B
- Packaging :
- Tray
- Operating Temperature :
- 200°C TJ
- hFE Min :
- 10
- Power Dissipation :
- 270W
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Additional Feature :
- DIFFUSED EMITTER BALLAST RESISTORS
- Configuration :
- Single
- Collector Base Voltage (VCBO) :
- 36V
- Collector Emitter Voltage (VCEO) :
- 18V
- Transistor Element Material :
- SILICON
- Max Collector Current :
- 20A
- Length :
- 24.89mm
- Base Part Number :
- SD1477
- Continuous Collector Current :
- 20A
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Emitter Base Voltage (VEBO) :
- 4V
- Package / Case :
- M111
- Polarity/Channel Type :
- NPN
- Voltage - Rated DC :
- 18V
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 10 @ 5A 5V
- Case Connection :
- Emitter
- Terminal Position :
- UNSPECIFIED
- ECCN Code :
- EAR99
