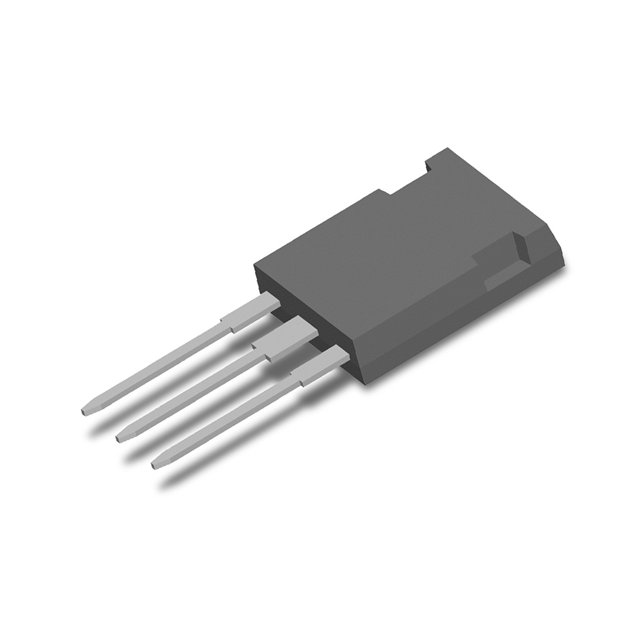

IXYX110N120A4

Manufacturer :

Littelfuse

Product Category :

Transistors - IGBTs - Single

Tradename :

XPT

Minimum Operating Temperature :

- 55 C

Power - Max :

1360 W

Operating Temperature :

-55°C ~ 175°C (TJ)

Voltage - Collector Emitter Breakdown (Max) :

1200 V

Test Condition :

600V, 50A, 1.5Ohm, 15V

Input Type :

Standard

Current - Collector Pulsed (Icm) :

900 A

Current - Collector (Ic) (Max) :

375 A

Gate Charge :

305 nC

IGBT Type :

PT

Vce(on) (Max) @ Vge, Ic :

1.8V @ 15V, 110A

Product Status :

Active

Supplier Device Package :

TO-247 (IXTH)

Packaging :

Tube

Maximum Operating Temperature :

+ 175 C

RoHS :

Details

Td (on/off) @ 25°C :

42ns/550ns

Package / Case :

TO-247-3

Configuration :

Single

Mounting Style :

Through Hole

Product Type :

IGBT Transistors

Mounting Type :

Through Hole

Base Product Number :

IXYX110

Technology :

Si

Series :

XPT?, GenX4?

Brand :

IXYS

Switching Energy :

2.5mJ (on), 8.4mJ (off)

Manufacturer :

IXYS

Product Category :

IGBT Transistors

Subcategory :

IGBTs

Package :

Tube
