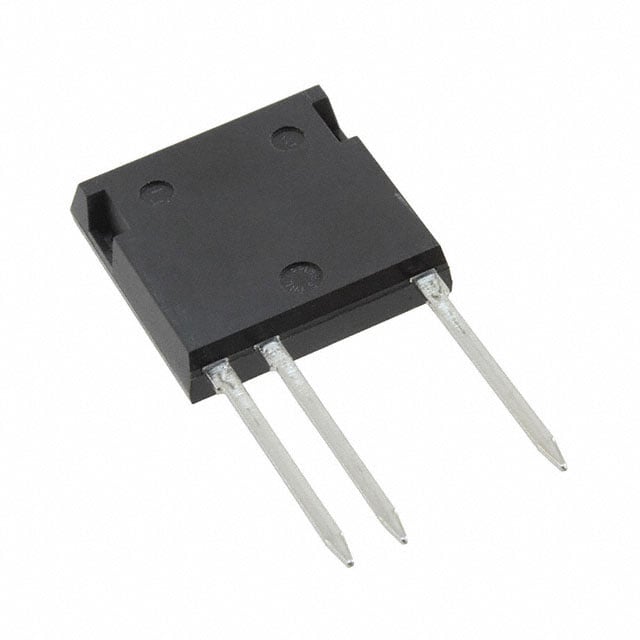

IXBF50N360

Manufacturer :

Littelfuse

Product Category :

Transistors - IGBTs - Single

Base Product Number :

IXBF50

Td (on/off) @ 25°C :

46ns/205ns

Product Type :

IGBT Transistors

Max Collector Current :

70A

Width :

5.21 mm

Vce(on) (Max) @ Vge, Ic :

2.9V @ 15V, 50A

Power - Max :

290W

RoHS Status :

ROHS3 Compliant

Current - Collector Pulsed (Icm) :

420A

Package :

Tube

Reach Compliance Code :

Unknown

Test Condition :

960V, 50A, 5 Ω, 15V

Subcategory :

IGBTs

Brand :

IXYS

IGBT Type :

--

Input Type :

Standard

Height :

21.34 mm

Mount :

Through Hole

Reverse Recovery Time (trr) :

1.7μs

Tradename :

BIMOSFET

Mounting Style :

Through Hole

Mounting Type :

Through Hole

Package / Case :

i4-Pac™-5 (3 Leads)

Voltage - Collector Emitter Breakdown (Max) :

3600V

Switching Energy :

--

Collector Emitter Breakdown Voltage :

3.6kV

Manufacturer :

IXYS

Technology :

Si

Gate Charge :

210nC

Current - Collector (Ic) (Max) :

70A

Supplier Device Package :

ISOPLUS i4-PAC™

Max Power Dissipation :

290W

Reverse Recovery Time :

1.7 µs

Published :

2014

Operating Temperature :

-55°C~150°C TJ

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

20.29 mm

Collector Emitter Voltage (VCEO) :

2.9V

Series :

BIMOSFET™

RoHS :

Details

Product Status :

Not For New Designs

Product Category :

IGBT Transistors

Factory Lead Time :

10 Weeks

Packaging :

Tube
