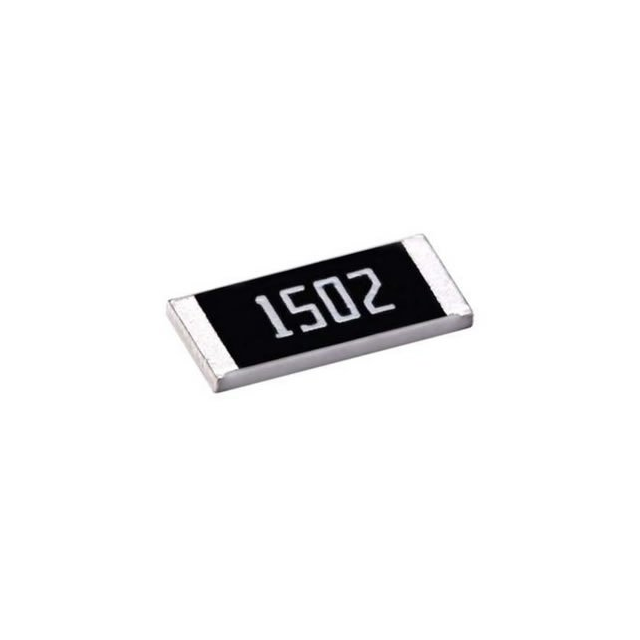

CR251003F

Manufacturer :

Meritek

Product Category :

Chip Resistor - Surface Mount

Nominal cross section conductor :

4

Height - Seated (Max) :

0.010 (0.26mm)

Colour outer sheath :

Yellow

Package :

Tape and Reel (TR)

Conductor surface :

Tinned

Composition :

Thick Film

Features :

-

Nominal voltage U :

750

Product Status :

Active

Operating Temperature :

-55°C ~ 155°C

Ratings :

-

Conductor category :

Class 5 = flexible

Tolerance :

±1%

Low smoke (according to EN 61034-2) :

No

Material outer sheath :

Polyurethane (PUR)

Power (Watts) :

0.05W, 1/20W

Package / Case :

0201 (0603 Metric)

Temperature Coefficient :

±200ppm/°C

Series :

CR

Flame retardant :

According to IEC/EN 60332-1-2

Permitted cable outer temperature during assembling/handling :

-40 - 90

Permitted cable outer temperature after assembling without vibration :

-50 - 90

Number of Terminations :

2

Halogen free according to IEC 60754-2 :

No

Resistance :

100 kOhms

Failure Rate :

-

Size / Dimension :

0.024 L x 0.012 W (0.60mm x 0.30mm)

Low smoke according to IEC 61034-2 :

No

Material core insulation :

Polyolefin

Core identification :

Colour

Outer diameter approx. :

13.6

Min. permitted bending radius, stationary application/permanent installation :

54.4
