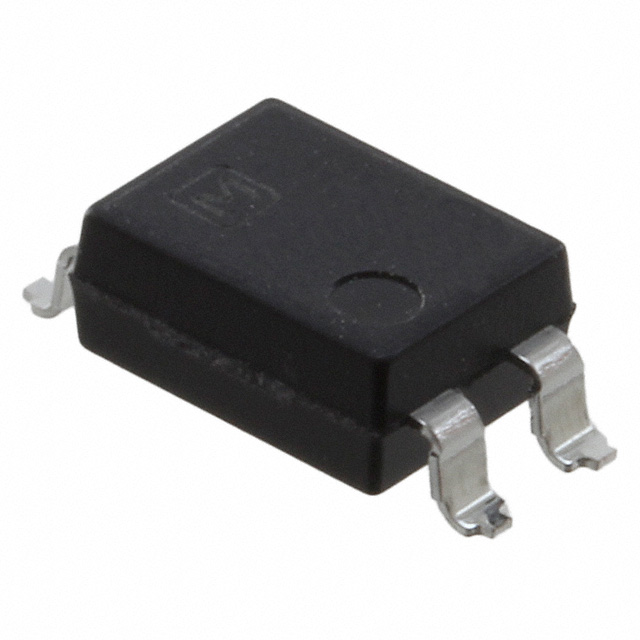

APT1211WAY

Manufacturer :

Panasonic

Product Category :

Optoisolators - Triac, SCR Output

RoHS Status :

RoHS Compliant

Max Power Dissipation :

500mW

Turn On Delay Time :

100 µs

Factory Lead Time :

10 Weeks

Mounting Type :

Surface Mount

Voltage - Forward (Vf) (Typ) :

1.21V

Published :

2000

Voltage - Isolation :

5000Vrms

Output Type :

Triac

Voltage - Off State :

600V

On-State Voltage-Max :

2.5V

Approval Agency :

cUR, VDE

Mount :

Surface Mount, Through Hole

Package / Case :

4-SMD, Gull Wing

Max Output Current :

100mA

Operating Temperature :

-40°C~100°C

Output Current per Channel :

100mA

Turn On Time :

100μs (Max)

Width :

6.4mm

Series :

APT

Number of Elements :

1

Input Trigger Current-Nom :

10mA

Static dV/dt (Min) :

500V/µs

Forward Current :

50mA

Height :

2.7mm

Hold Current :

3.5mA

Zero Crossing Circuit :

yes

Number of Pins :

4

Length :

4.78mm

Current - LED Trigger (Ift) (Max) :

10mA

Current - Hold (Ih) :

3.5mA

Configuration :

Single

Number of Channels :

1

RMS Current (Irms) :

100mA

Packaging :

Tape and Reel (TR)

Repetitive Peak Off-state Voltage :

600V

Max Input Voltage :

1.3V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
