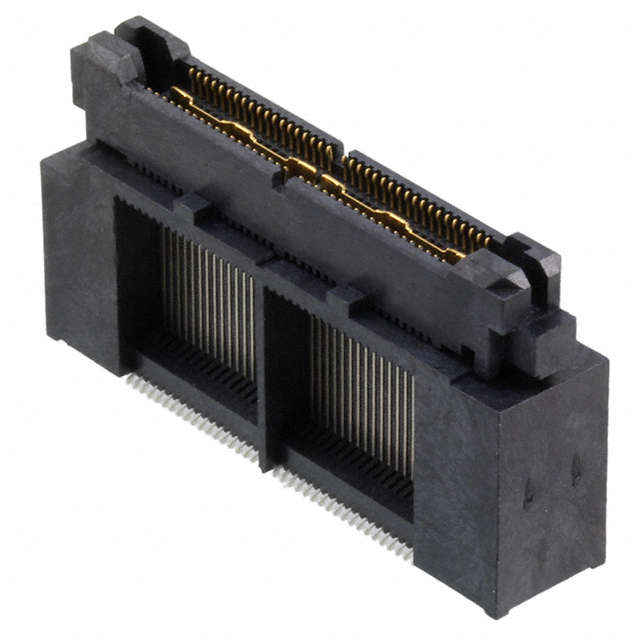

5767032-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Mixed Contacts :

No

Contact Plating :

Gold, Tin

Flammability Rating :

UL94 V-0

Lead Free :

Lead Free

Operating Supply Voltage :

30V

Width :

8.128mm

Filter Feature :

No

ELV :

Compliant

Contact Current Rating :

11.5A

Depth :

8.13mm

Max Voltage Rating (AC) :

30V

Orientation :

Vertical

Contact Finish Thickness :

30.0μin 0.76μm

Pitch :

0.025 0.64mm

Feature :

Board Guide, Ground Bus (Plane)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Sealable :

No

Data Rate :

10 Gbps

Contact Gender :

Male

Number of Rows :

2

Differential Signaling :

yes

Published :

2006

Circuit Application :

Signal

Color :

Black

Height :

19.812mm

Min Operating Temperature :

-55°C

Mount :

Surface Mount

Option :

GENERAL PURPOSE

IEC Conformance :

No

Termination :

SMD/SMT

Contact Finish :

Gold

JESD-609 Code :

e4

MIL Conformance :

No

Factory Lead Time :

13 Weeks

Number of Columns :

38

Length :

38.1mm

DIN Conformance :

No

Pbfree Code :

yes

Series :

MICTOR

RoHS Status :

RoHS Compliant

Packaging :

Tube

Stack Height (Mating) :

20mm 29mm

Connector Type :

Plug, Outer Shroud Contacts

Stack Height :

29mm

Max Operating Temperature :

125°C

Height Above Board :

0.780 19.81mm

Housing Material :

Polymer

Number of Positions :

76

Underplate Material :

Nickel

Contact Finish Thickness - Mating :

759.99848 nm

Contact Resistance :

10MOhm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Insulation Resistance :

2MOhm

Mating Post Length :

1.625mm

Mounting Type :

Surface Mount

PCB Mount Retention :

With

Plating Thickness :

6.35μm

Total Number of Contacts :

76
