5767006-1
Or copy the link below:
- Mfr.Part #
- 5767006-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 38POS EDGE MNT GOLD
- Stock
- 909
- In Stock ：
- 909
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Contact Finish Thickness - Mating :
- 760 nm
- Termination :
- SMD/SMT
- Contact Plating :
- Gold, Tin
- Contact Gender :
- Male
- Row Spacing :
- 1.52 mm
- Width :
- 5.2832mm
- Reference Standard :
- UL
- Total Number of Contacts :
- 38
- Plating Thickness :
- 6.35μm
- Max Voltage Rating (AC) :
- 30V
- Operating Supply Voltage :
- 30V
- Mount :
- Edge, Straddle Mount
- Color :
- Black
- Number of Rows :
- 2
- Contact Pattern :
- RECTANGULAR
- Number of Positions :
- 38
- Feature :
- Board Guide, Ground Bus (Plane)
- Pitch :
- 0.025 0.64mm
- Flammability Rating :
- UL94 V-0
- Reliability :
- COMMERCIAL
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Height :
- 2.655mm
- Insulation Resistance :
- 2MOhm
- Published :
- 2006
- Circuit Application :
- Signal
- Differential Signaling :
- yes
- Underplate Material :
- Nickel
- Packaging :
- Tube
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Data Rate :
- 10 Gbps
- Height Above Board :
- 0.251 6.38mm
- Current Rating :
- 1A
- Contact Resistance :
- 10MOhm
- Pbfree Code :
- yes
- JESD-609 Code :
- e3
- Series :
- MICTOR
- DIN Conformance :
- No
- Number of Conductors :
- ONE
- Housing Material :
- Polymer
- REACH SVHC :
- Unknown
- Depth :
- 6.38mm
- Contact Material :
- Gold, Tin
- RoHS Status :
- RoHS Compliant
- Orientation :
- Straight
- Factory Lead Time :
- 25 Weeks
- Number Of PCB Rows :
- 2
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Mating Alignment :
- Without
- PCB Mount Alignment :
- With
- Max Operating Temperature :
- 125°C
- Option :
- GENERAL PURPOSE
- Connector Type :
- Plug, Outer Shroud Contacts
- Sealable :
- No
- Voltage - Rated :
- 30V
- Dielectric Withstanding Voltage :
- 500VAC V
- PCB Thickness :
- 2.36mm
- Min Operating Temperature :
- -55°C
- Length :
- 25.4mm
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Gold
- PCB Contact Pattern :
- RECTANGULAR
- Mounting Type :
- Board Edge, Straddle Mount
- Number of Power Positions :
- 1
- Mating Post Length :
- 939.8μm
- IEC Conformance :
- No
- Contact Current Rating :
- 11.5A
- Number of Columns :
- 19
- Datasheets
- 5767006-1

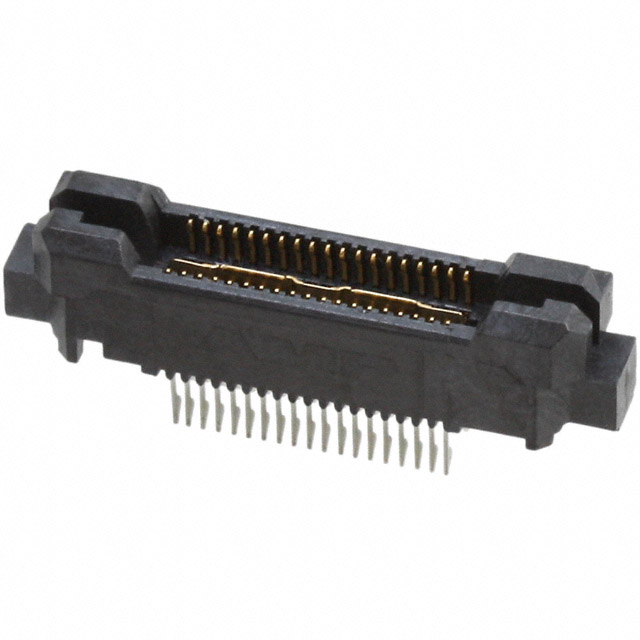

Plug, Outer Shroud Contacts Tube 2 Rows 0.025 0.64mm Board Edge, Straddle Mount 38 Positions MICTOR Gold SMD/SMT Gold, Tin
5767006-1 Overview
Packaging for this item is Plug, Outer Shroud Contacts.It is necessary to use a Tube case for packaging the product.There is a mounting type of Board Edge, Straddle Mount for this device.This product is part of the MICTOR Series.In operation, it is possible to ensure that Board Guide, Ground Bus (Plane) is maintained.This part requires a Edge, Straddle Mount socket for mounting.You should use it when it's below 125°C.A minimum temperature of -55°C is required for the operation of this device.Since this device is suitable for operation with a 30V supply, it can be used with that supply.
5767006-1 Features
MICTOR series
Package / Case: Tube
Mounting Type:Board Edge, Straddle Mount
Max Operating temperature at -55°C
5767006-1 Applications
There are a lot of TE Connectivity AMP Connectors
5767006-1 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
