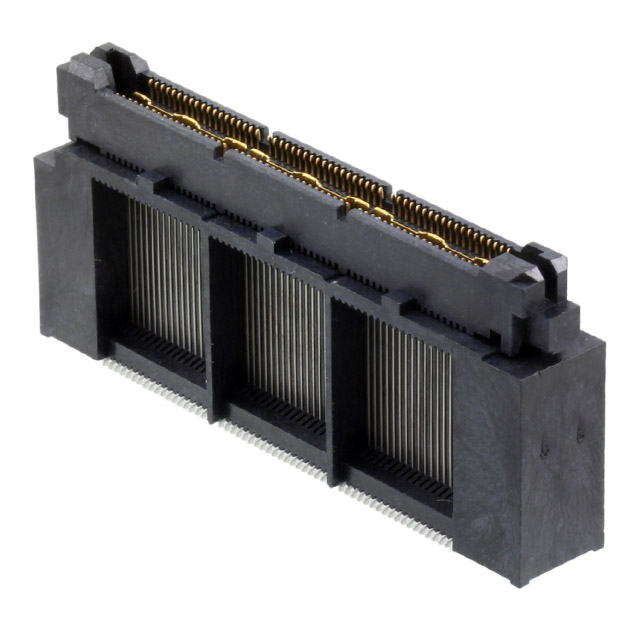

5767017-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Min Operating Temperature :

-55°C

Packaging :

Tube

Published :

2006

Number of Positions :

76

Max Voltage Rating (AC) :

30V

DIN Conformance :

No

Insulation Resistance :

2MOhm

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Stack Height :

22.86mm

Orientation :

Vertical

Feature :

Board Guide, Ground Bus (Plane)

Mating Post Length :

1.6285mm

ELV :

Compliant

RoHS Status :

RoHS Compliant

Contact Plating :

Gold, Tin

MIL Conformance :

No

Pitch :

0.025 0.64mm

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Underplate Material :

Nickel

Connector Type :

Plug, Outer Shroud Contacts

Termination :

SMD/SMT

Mounting Type :

Surface Mount

Length :

38.1mm

Contact Resistance :

10MOhm

Pbfree Code :

yes

Depth :

8.13mm

Data Rate :

10 Gbps

Circuit Application :

Signal

PCB Mount Retention :

With

Series :

MICTOR

Height :

22.6568mm

Plating Thickness :

6.35μm

Housing Material :

Polymer

Gender :

Male

Contact Finish Thickness :

30.0μin 0.76μm

Width :

8.128mm

Filter Feature :

No

Stack Height (Mating) :

22.86mm 31.9mm

Contact Current Rating :

11.5A

Max Operating Temperature :

125°C

Number of Rows :

2

Differential Signaling :

yes

Factory Lead Time :

13 Weeks

Contact Finish :

Gold

Sealable :

No

Operating Supply Voltage :

30V

Number of Columns :

38

Contact Finish Thickness - Mating :

759.99848 nm

Mixed Contacts :

No

Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Mount :

Surface Mount, Through Hole

Height Above Board :

0.892 22.66mm

Total Number of Contacts :

76

Color :

Black
