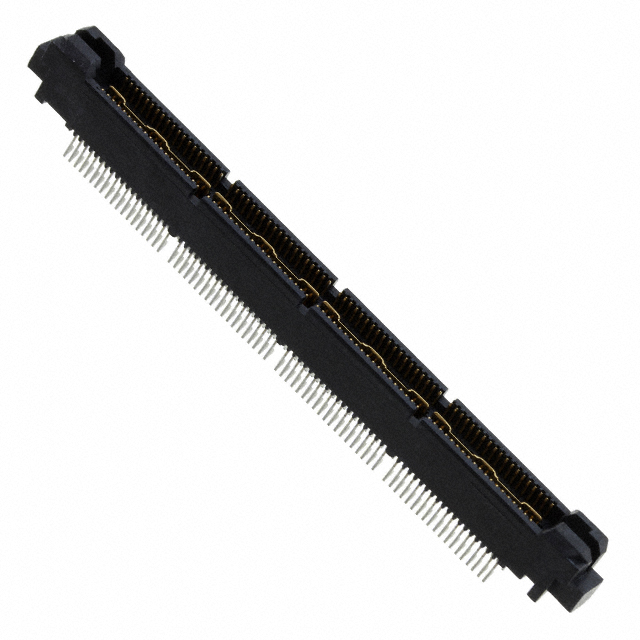

5767006-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

ELV :

Compliant

Depth :

6.38mm

Total Number of Contacts :

152

Contact Current Rating :

11.5A

Mating Post Length :

939.8μm

Color :

Black

Operating Supply Voltage :

30V

Max Voltage Rating (AC) :

30V

Length :

63.45mm

Contact Gender :

Male

Number of Power Positions :

4

Row Spacing :

5.79 mm

PCB Thickness :

2.36mm

IEC Conformance :

No

PCB Mount Alignment :

With

Min Operating Temperature :

-55°C

Contact Finish Thickness :

30.0μin 0.76μm

Height :

6.3754mm

Series :

MICTOR

Number of Rows :

2

Mixed Contacts :

No

RoHS Status :

RoHS Compliant

Connector Type :

Plug, Outer Shroud Contacts

Flammability Rating :

UL94 V-0

DIN Conformance :

No

Sealable :

No

Feature :

Board Guide, Ground Bus (Plane)

Orientation :

Straight

Termination :

SMD/SMT

Pbfree Code :

yes

Filter Feature :

No

Max Operating Temperature :

125°C

Contact Finish :

Gold

Plating Thickness :

6.35μm

Option :

GENERAL PURPOSE

Contact Plating :

Gold, Tin

Circuit Application :

Signal

Mount :

Edge, Straddle Mount

Height Above Board :

0.251 6.38mm

Pitch :

0.025 0.64mm

MIL Conformance :

No

Contact Resistance :

10MOhm

Underplate Material :

Nickel

Width :

5.2832mm

Number of Positions :

152

Insulation Resistance :

10GOhm

Number of Columns :

76

Published :

2006

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Mounting Type :

Board Edge, Straddle Mount

Housing Material :

Polymer

Packaging :

Tube

Mating Alignment :

Without

Data Rate :

10 Gbps

Contact Finish Thickness - Mating :

760 nm

Differential Signaling :

yes

Factory Lead Time :

25 Weeks
