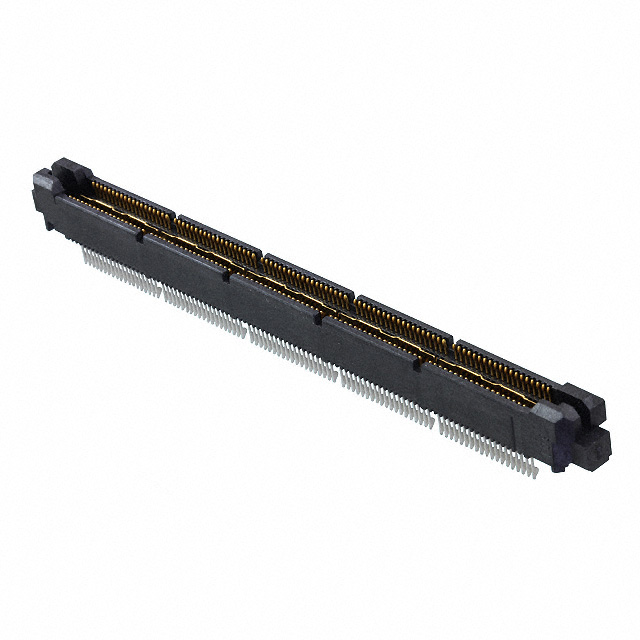

5767006-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Data Rate :

10 Gbps

IEC Conformance :

No

Contact Finish :

Gold

Mating Post Length :

939.8μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Black

MIL Conformance :

No

Number of Columns :

95

Sealable :

No

Number of Rows :

2

Number of Power Positions :

5

Plating Thickness :

6.35μm

Series :

MICTOR

Mounting Type :

Board Edge, Straddle Mount

Option :

GENERAL PURPOSE

Height :

6.3754mm

Contact Plating :

Gold, Tin

ELV :

Compliant

Orientation :

Straight

Depth :

5.28mm

Operating Supply Voltage :

30V

Packaging :

Tube

Width :

5.2832mm

Length :

76.2mm

Published :

2006

Contact Current Rating :

11.5A

Total Number of Contacts :

190

Termination :

SMD/SMT

Housing Material :

Polymer

DIN Conformance :

No

Filter Feature :

No

Feature :

Board Guide, Ground Bus (Plane)

Min Operating Temperature :

-55°C

Differential Signaling :

yes

Contact Resistance :

10MOhm

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Mixed Contacts :

No

Gender :

Male

Underplate Material :

Nickel

Max Operating Temperature :

125°C

Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Contact Finish Thickness - Mating :

762 nm

Insulation Resistance :

2MOhm

Mount :

Edge, Straddle Mount

Number of Positions :

190

Factory Lead Time :

25 Weeks

Pitch :

0.025 0.64mm

PCB Mount Retention :

Without

Mating Alignment :

With

RoHS Status :

RoHS Compliant

Connector Type :

Plug, Outer Shroud Contacts

Contact Finish Thickness :

30.0μin 0.76μm

Height Above Board :

0.251 6.38mm

Circuit Application :

Signal

Max Voltage Rating (AC) :

30V
