- Mfr.Part #
- 5767006-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 114POS EDGE MNT GOLD
- Stock
- 31
- In Stock ：
- 31
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Circuit Application :
- Signal
- Mount :
- Edge, Straddle Mount
- Depth :
- 6.38mm
- Mating Post Length :
- 939.8μm
- Gender :
- Male
- Termination :
- SMD/SMT
- Row Spacing :
- 1.52 mm
- Width :
- 5.2832mm
- Contact Resistance :
- 10MOhm
- Housing Color :
- Black
- PCB Mount Retention :
- Without
- Contact Finish Thickness - Mating :
- 762 nm
- Number of Positions :
- 114
- Contact Finish :
- Gold
- Length :
- 50.79746mm
- Radiation Hardening :
- No
- ELV :
- Compliant
- Housing Material :
- Polymer
- Sealable :
- No
- Pitch :
- 0.025 0.64mm
- PCB Mount Alignment :
- With
- Color :
- Black
- Lead Free :
- Lead Free
- Packaging :
- Tube
- Contact Current Rating :
- 11.5A
- Stackable :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Height Above Board :
- 0.251 6.38mm
- Connector Type :
- Plug, Outer Shroud Contacts
- Orientation :
- Straight
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Data Rate :
- 10 Gbps
- Min Operating Temperature :
- -55°C
- Plating Thickness :
- 6.35μm
- Number of Columns :
- 57
- Number of Contacts :
- 114
- Feature :
- Board Guide, Ground Bus (Plane)
- Max Voltage Rating (AC) :
- 30V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 25 Weeks
- Flammability Rating :
- UL94 V-0
- Number of Power Positions :
- 3
- Mating Alignment :
- With
- Number of Rows :
- 2
- RoHS Status :
- RoHS Compliant
- Plating :
- Gold
- Operating Supply Voltage :
- 30V
- Number of Signal Positions :
- 114
- Contact Plating :
- Gold, Tin
- Underplate Material :
- Nickel
- Series :
- MICTOR
- Differential Signaling :
- yes
- Published :
- 2006
- Height :
- 6.3754mm
- Insulation Resistance :
- 2MOhm
- Max Operating Temperature :
- 125°C
- Mounting Type :
- Board Edge, Straddle Mount
- Datasheets
- 5767006-3

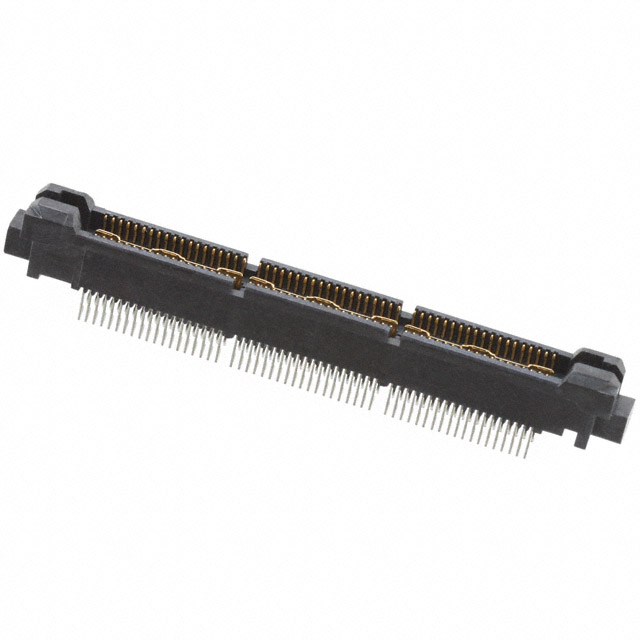

Plug, Outer Shroud Contacts Tube 2 Rows 0.025 0.64mm Board Edge, Straddle Mount 114 Positions MICTOR Gold SMD/SMT
5767006-3 Overview
A Plug, Outer Shroud Contacts package is included with it.Packaging is performed using a Tube case.Its mounting type is Board Edge, Straddle Mount.It is part of the MICTOR Series of products.In operation, Board Guide, Ground Bus (Plane) may be maintained.If you wish to mount this part, you will need to use a Edge, Straddle Mount socket.Whenever it's below 125°C, it's best to use it.The device must operate at a temperature of -55°C at all times.The device is capable of operating with a 30V supply, so it is suitable for this application.
