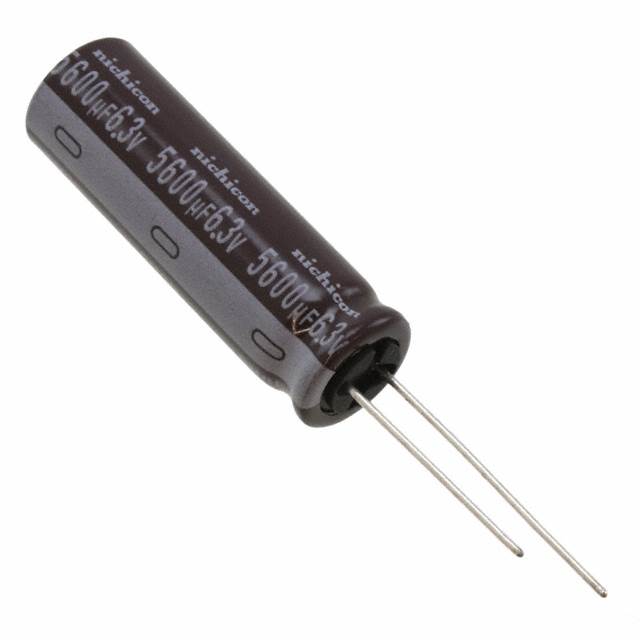

UPM0J562MHD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Number of Terminations :

2

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Life (Hours) :

5000 hours

Diameter :

12.5mm

Mounting Type :

Through Hole

Radiation Hardening :

No

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

UPM

Packaging :

Bulk

Package / Case :

Radial, Can

Height :

40mm

Tolerance :

±20%

Capacitance :

5600µF

Impedance :

26mOhm

Tan Delta :

0.32

Voltage - Rated DC :

6.3V

Leakage Current :

1.0584mA

Lifetime @ Temp :

5000 Hrs @ 105°C

Factory Lead Time :

17 Weeks

Ripple Current :

2.04A

Polarization :

Polar

Operating Temperature :

-55°C~105°C

Pbfree Code :

yes

Published :

2009

Applications :

GENERAL PURPOSE

ECCN Code :

EAR99

Terminal Finish :

Matte Tin (Sn)

Lead Pitch :

5mm

Ripple Current @ Low Frequency :

2.21A @ 120Hz

JESD-609 Code :

e3

Ripple Current @ High Frequency :

2.46A @ 10kHz

HTS Code :

8532.22.00

RoHS Status :

ROHS3 Compliant

Termination :

Radial

Height Seated (Max) :

1.654 42.00mm

Feature :

GENERAL PURPOSE

Dielectric Material :

ALUMINUM (WET)

Size / Dimension :

0.492Dia 12.50mm

Lead Spacing :

0.197 5.00mm

Terminal Shape :

Wire
