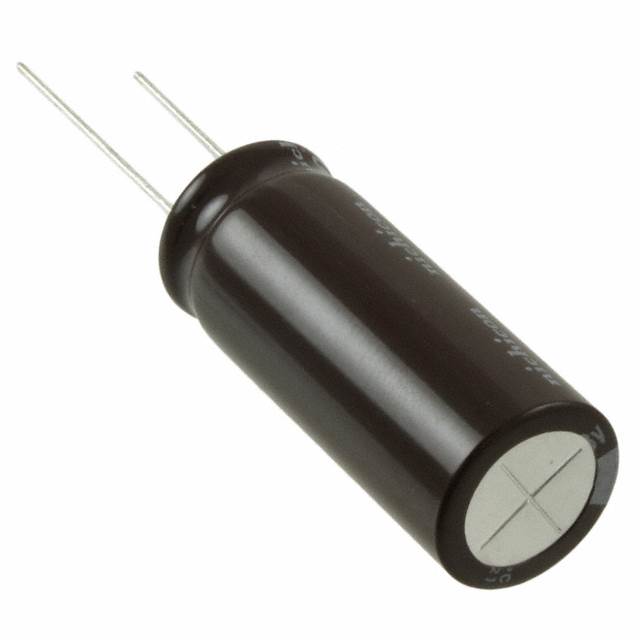

UPM0J103MHD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Radiation Hardening :

No

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

JESD-609 Code :

e3

Feature :

GENERAL PURPOSE

Voltage - Rated DC :

6.3V

Terminal Shape :

Wire

Tan Delta :

0.4

Termination :

Radial

Ripple Current @ Low Frequency :

2.79A @ 120Hz

Polarization :

Polar

Size / Dimension :

0.630Dia 16.00mm

Leakage Current :

1.89mA

Life (Hours) :

5000 hours

Mounting Type :

Through Hole

Lifetime @ Temp :

5000 Hrs @ 105°C

Number of Terminations :

2

Published :

2015

RoHS Status :

ROHS3 Compliant

Dielectric Material :

ALUMINUM (WET)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8532.22.00

Packaging :

Bulk

Ripple Current :

2.47A

ECCN Code :

EAR99

Series :

UPM

Tolerance :

±20%

Impedance :

20mOhm

Package / Case :

Radial, Can

Height :

40mm

Capacitance :

10000µF

Lead Spacing :

0.295 7.50mm

Factory Lead Time :

18 Weeks

Height Seated (Max) :

1.654 42.00mm

Lead Pitch :

7.5mm

Applications :

GENERAL PURPOSE

Operating Temperature :

-55°C~105°C

Terminal Finish :

Matte Tin (Sn)

Diameter :

16mm

Mount :

Through Hole

Ripple Current @ High Frequency :

3.11A @ 10kHz

Pbfree Code :

yes
