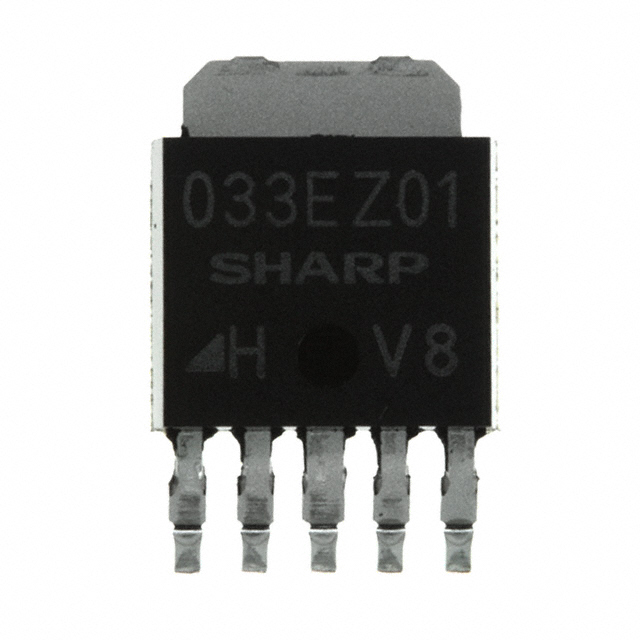

PQ033EZ01ZPH

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Terminal Form :

Gull wing

Min Input Voltage :

3.8V

RoHS Status :

RoHS Compliant

Voltage Dropout (Max) :

0.5V @ 500mA

PSRR :

60dB (120Hz)

Package / Case :

TO-252-6, DPak (5 Leads + Tab)

JESD-609 Code :

e2

Reach Compliance Code :

Unknown

Packaging :

Tape and Reel (TR)

Operating Temperature :

-40°C~85°C

Current - Quiescent (Iq) :

2mA

Dropout Voltage :

200mV

Terminal Position :

Single

Terminal Finish :

TIN COPPER

Output Configuration :

Positive

Voltage - Input (Max) :

10V

Control Features :

Enable

Output Voltage :

3.3V

Published :

2006

Peak Reflow Temperature (Cel) :

260

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - Output :

1A

Number of Functions :

1

Height Seated (Max) :

3.05mm

Number of Regulators :

1

Qualification Status :

Not Qualified

Number of Pins :

63

Input Bias Current :

1mA

Output Voltage 1 :

3.3V

Output Type :

FIXED

Width :

5.5mm

Max Power Dissipation :

8W

JESD-30 Code :

R-PSSO-G5

Number of Terminations :

5

Time@Peak Reflow Temperature-Max (s) :

10

Mount :

Surface Mount

Protection Features :

Over Current, Over Temperature
