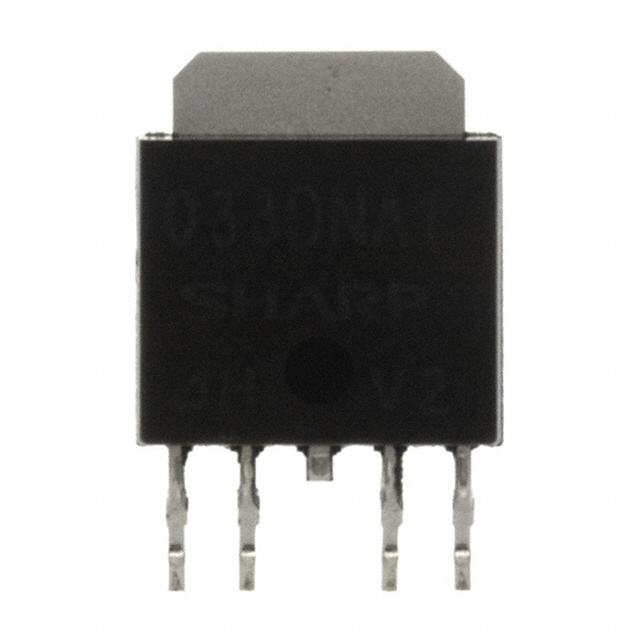

PQ033DNA1ZPH

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Package / Case :

TO-252-5, DPak (4 Leads + Tab), TO-252AD

PSRR :

60dB (120Hz)

Number of Regulators :

1

Dropout Voltage :

200mV

Lead Free :

Lead Free

Number of Functions :

1

Mount :

Surface Mount

Output Voltage :

3.3V

Max Power Dissipation :

8W

Output Configuration :

Positive

Terminal Form :

Gull wing

JESD-30 Code :

R-PSSO-G4

RoHS Status :

RoHS Compliant

Input Voltage (Min) :

4V

Published :

2006

Height Seated (Max) :

2.85mm

Number of Terminations :

4

Operating Temperature :

-40°C~85°C

Current - Quiescent (Iq) :

8mA

Peak Reflow Temperature (Cel) :

260

Mounting Type :

Surface Mount

Packaging :

Tape and Reel (TR)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Input (Max) :

24V

Protection Features :

Over Current, Over Temperature

Control Features :

Enable

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Length :

6.6mm

Qualification Status :

Not Qualified

Number of Pins :

63

Input Bias Current :

4mA

Output Type :

FIXED

Current - Output :

1A

Reach Compliance Code :

Unknown

Width :

5.5mm

Voltage Dropout (Max) :

0.5V @ 500mA

Output Voltage 1 :

3.3V

Terminal Position :

Single
