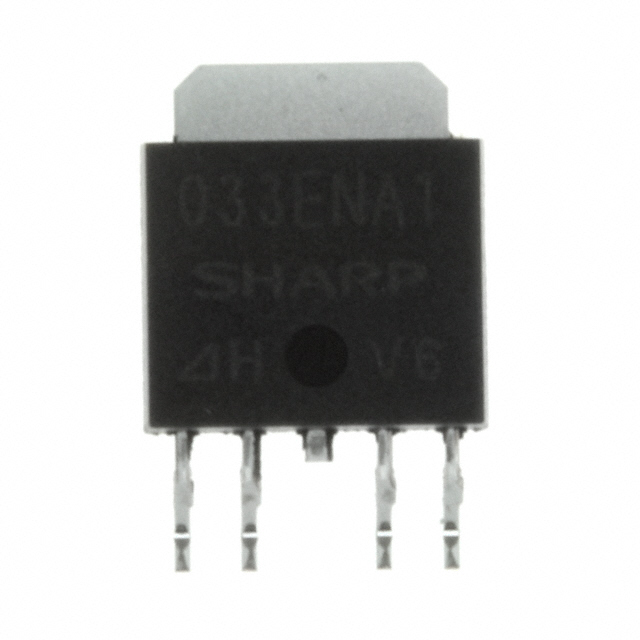

PQ033ENA1ZPH

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Packaging :

Tape and Reel (TR)

RoHS Status :

RoHS Compliant

Min Input Voltage :

3.8V

Current - Output :

1A

Radiation Hardening :

No

Input Bias Current :

1mA

Output Voltage :

3.3V

Operating Temperature :

-40°C~85°C

Max Input Voltage :

10V

Output Configuration :

Positive

Mounting Type :

Surface Mount

Dropout Voltage :

200mV

Polarity :

Positive

Number of Regulators :

1

Voltage - Input (Max) :

10V

Max Power Dissipation :

8W

Voltage Dropout (Max) :

0.5V @ 500mA

Protection Features :

Over Current, Over Temperature

PSRR :

60dB (120Hz)

Output Type :

FIXED

Number of Pins :

63

Number of Outputs :

1

Quiescent Current :

2mA

Min Operating Temperature :

-40°C

Current - Quiescent (Iq) :

2mA

Control Features :

Enable

Voltage - Output (Min/Fixed) :

3.3V

Max Operating Temperature :

85°C

Package / Case :

TO-252-5, DPak (4 Leads + Tab), TO-252AD

Published :

2006

Supplier Device Package :

SC-63

Mount :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Output Current :

1A
