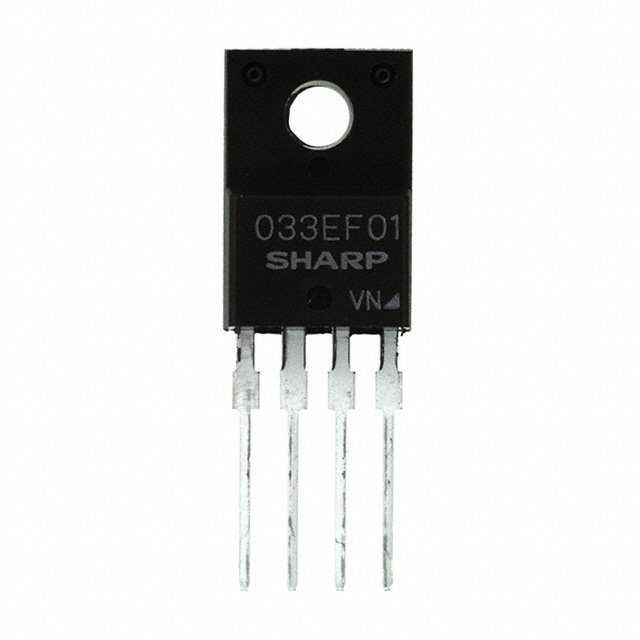

PQ033EF01SZH
Or copy the link below:
- Mfr.Part #
- PQ033EF01SZH
- Manufacturer
- Sharp Microelectronics
- Package / Case
- TO-220-4
- Datasheet
- Download
- Description
- IC REG LINEAR 3.3V 1A TO220-4
- Stock
- 23,378
- In Stock ：
- 23,378
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sharp Microelectronics
- Product Category :
- Voltage Regulators - Linear
- Dropout Voltage :
- 500mV
- RoHS Status :
- RoHS Compliant
- Output Voltage 1 :
- 3.3V
- Terminal Finish :
- TIN COPPER
- Package / Case :
- TO-220-4
- JESD-609 Code :
- e2
- Current - Output :
- 1A
- Output Voltage :
- 3.3V
- Lead Free :
- Lead Free
- Mounting Type :
- Through Hole
- Number of Terminations :
- 4
- Reach Compliance Code :
- Unknown
- Protection Features :
- Over Current, Over Temperature
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Current - Quiescent (Iq) :
- 2mA
- Number of Functions :
- 1
- Mount :
- Through Hole
- Input Bias Current :
- 1mA
- Max Power Dissipation :
- 15W
- PSRR :
- 60dB (120Hz)
- JESD-30 Code :
- R-PSFM-T4
- Qualification Status :
- Not Qualified
- Terminal Position :
- Single
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Packaging :
- Tube
- Voltage - Input (Max) :
- 10V
- Operating Temperature :
- -40°C~85°C
- Published :
- 2006
- Output Type :
- FIXED
- Control Features :
- Enable
- Output Configuration :
- Positive
- Min Input Voltage :
- 3.8V
- Number of Regulators :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- PQ033EF01SZH
PQ033EF01SZH Documents
Enable Fixed PMIC TO-220-4
PQ033EF01SZH Overview
The package is delivered in a Tube case. In order to package the IC voltage regulator, a TO-220-4 case is used. On the Voltage regulator IC, there are 4 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Through Hole can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~85°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 1A. A dropout voltage of 10 volts is what makes it a dropout voltage.
PQ033EF01SZH Features
500mV dropout voltage
PQ033EF01SZH Applications
There are a lot of Sharp Microelectronics
PQ033EF01SZH Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
