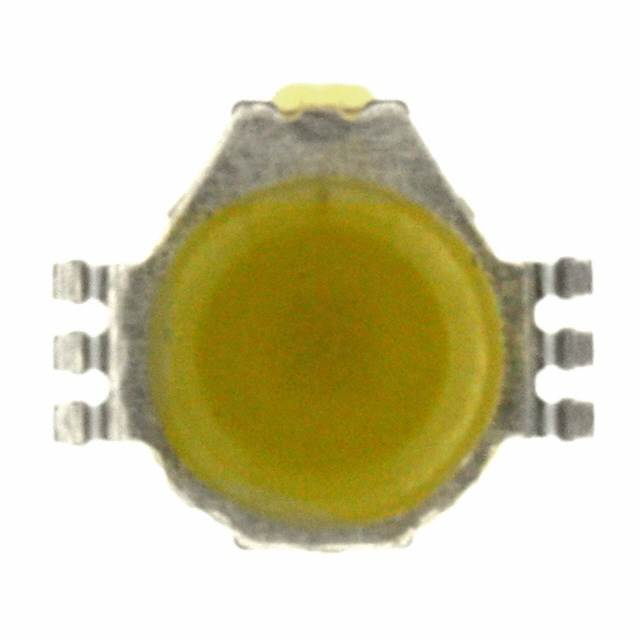

OVTL01LGAWD

Manufacturer :

TT Electronics

Product Category :

Input Current :

350mA

Diameter :

4.4mm

Series :

Lednium

Power Rating :

1W

Max Current Rating :

350mA

Published :

2007

Illumination Color :

White

Package / Case :

6-SMD, Gull Wing

Lead Free :

Lead Free

Length :

6mm

Voltage - Forward (Vf) (Typ) :

3.4V

Flux @ 25°C, Current - Test :

60lm Typ

Number of Pins :

6

Luminous Flux :

45 lm

Max Operating Temperature :

85°C

Voltage - Rated DC :

3.4V

Viewing Angle :

135°

Packaging :

Tape and Reel (TR)

Nominal Supply Current :

350mA

Min Operating Temperature :

-50°C

Lens Style :

Flat, Round

Height Seated (Max) :

0.064 1.62mm

Current - Test :

350mA

Forward Current :

350mA

Thermal Resistance of Package :

2°C/W

CCT (K) :

5800K (5200K ~ 6400K)

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Forward Voltage :

3.4V

Luminous Intensity :

12.5 mcd

Height :

1.52mm

Size / Dimension :

0.197Lx0.197W 5.00mmx5.00mm

Supplier Device Package :

SMD

Lens Color :

Clear

Current - Max :

350mA

Width :

5mm

Reverse Voltage (DC) :

5V

Color :

White, Cool

Lumens/Watt @ Current - Test :

50 lm/W
