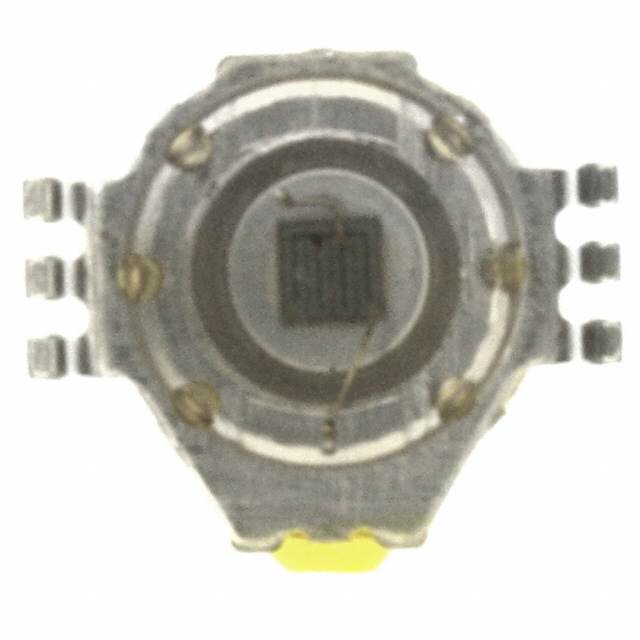

OVTL01LGAGS

Manufacturer :

TT Electronics

Product Category :

Min Operating Temperature :

-50°C

Lens Style :

Diffused

RoHS Status :

RoHS Compliant

Flux @ Current/Temperature - Test :

60lm Typ

Published :

2007

Current - Max :

350mA

Power Dissipation :

1W

Mount :

Surface Mount

Voltage - Forward (Vf) (Typ) :

3.4V

Lead Free :

Lead Free

Luminous Intensity :

16 mcd

Max Current Rating :

350mA

Lumens/Watt @ Current - Test :

50 lm/W

Viewing Angle :

135°

Size / Dimension :

0.197Dia 5.00mm

Mounting Type :

Surface Mount

Diameter :

4.4mm

Package / Case :

6-SMD, Gull Wing

Number of Pins :

6

Packaging :

Tape and Reel (TR)

Lens Color :

Clear

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Forward Voltage :

3.6V

Forward Current :

350mA

Color :

Green

Supplier Device Package :

SMD

Temperature - Test :

25°C

Luminous Flux :

60 lm

Length :

6mm

Wavelength :

515nm 510nm ~ 520nm

Nominal Supply Current :

350mA

Height Seated (Max) :

0.064 1.62mm

Input Current :

350mA

Current - Test :

350mA

Thermal Resistance of Package :

2°C/W

Illumination Color :

Green

Power Rating :

1W

Max Operating Temperature :

85°C

Voltage - Rated DC :

3.6V

Height :

1.52mm
