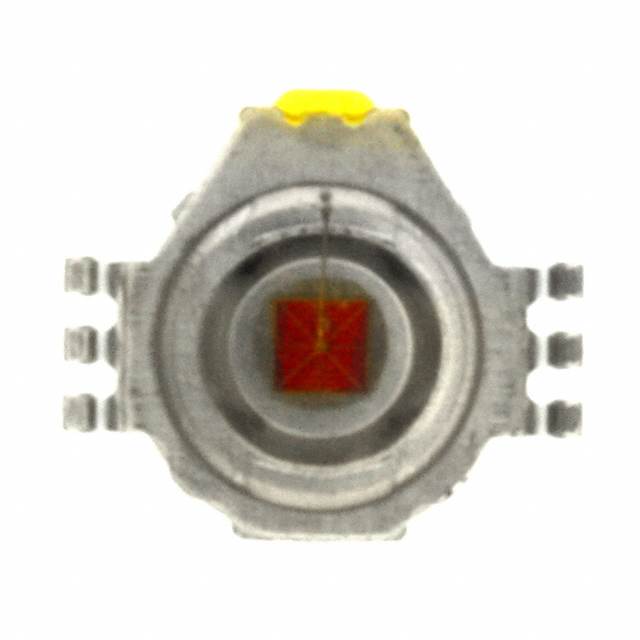

OVTL01LGAAS
- Mfr.Part #
- OVTL01LGAAS
- Manufacturer
- TT Electronics
- Package / Case
- 6-SMD, Gull Wing
- Datasheet
- Download
- Description
- LED AMBER 595NM SMD
- Stock
- 11,006
- In Stock :
- 11,006
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TT Electronics
- Product Category :
- Flux @ Current/Temperature - Test :
- 35lm Typ
- Temperature - Test :
- 25°C
- Power Rating :
- 1W
- Voltage - Rated DC :
- 2.3V
- Illumination Color :
- Orange
- Lead Free :
- Lead Free
- Height Seated (Max) :
- 0.064 1.62mm
- Lumens/Watt @ Current - Test :
- 43 lm/W
- Voltage - Forward (Vf) (Typ) :
- 2.3V
- Supplier Device Package :
- SMD
- Length :
- 6mm
- Mounting Type :
- Surface Mount
- Current - Test :
- 350mA
- Viewing Angle :
- 135°
- Current - Max :
- 350mA
- Forward Current :
- 350mA
- Package / Case :
- 6-SMD, Gull Wing
- Forward Voltage :
- 2.3V
- Published :
- 2007
- Max Current Rating :
- 350mA
- Number of Pins :
- 6
- Size / Dimension :
- 0.197Dia 5.00mm
- Color :
- Amber
- Min Operating Temperature :
- -50°C
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Lens Style :
- Diffused
- Thermal Resistance of Package :
- 2°C/W
- Luminous Flux :
- 35 lm
- Lens Color :
- Clear
- Height :
- 1.52mm
- Diameter :
- 4.4mm
- Nominal Supply Current :
- 350mA
- Mount :
- Surface Mount
- Input Current :
- 350mA
- Packaging :
- Tape and Reel (TR)
- Wavelength :
- 595nm 590nm ~ 600nm
- RoHS Status :
- RoHS Compliant
- Max Operating Temperature :
- 85°C
- Luminous Intensity :
- 12.5 mcd
- Datasheets
