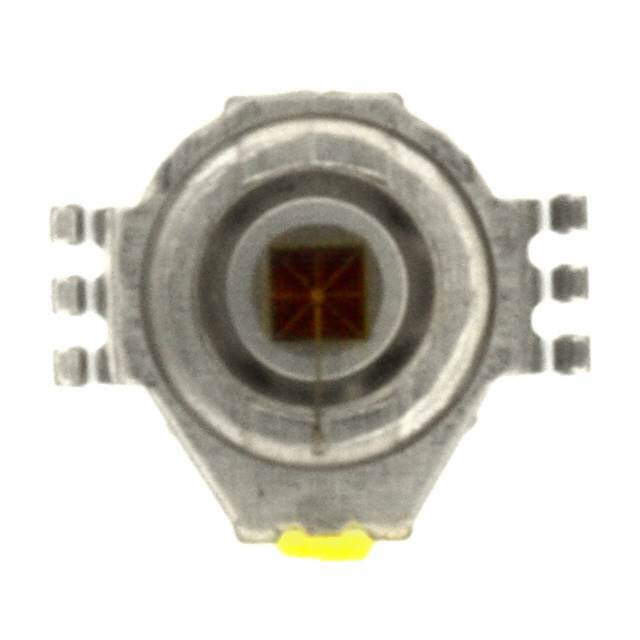

OVTL01LGARS

Manufacturer :

TT Electronics

Product Category :

Published :

2007

Voltage - Forward (Vf) (Typ) :

2.3V

Lumens/Watt @ Current - Test :

56 lm/W

Luminous Intensity :

8.5 mcd

Nominal Supply Current :

350mA

Thermal Resistance of Package :

2°C/W

Length :

6mm

Mount :

Surface Mount

Height Seated (Max) :

0.064 1.62mm

Diameter :

4.4mm

Mounting Type :

Surface Mount

Number of Pins :

6

Current - Max :

350mA

Viewing Angle :

135°

Packaging :

Tape and Reel (TR)

Package / Case :

6-SMD, Gull Wing

Size / Dimension :

0.197Dia 5.00mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Forward Current :

350mA

Max Current Rating :

350mA

Min Operating Temperature :

-50°C

Input Current :

350mA

RoHS Status :

RoHS Compliant

Lens Style :

Round

Termination :

SMD/SMT

Flux @ Current/Temperature - Test :

45lm Typ

Illumination Color :

Red

Peak Pulse Current :

1A

Width :

6mm

Dominant Wavelength :

620 nm

Forward Voltage :

2.3V

Luminous Flux :

45 lm

Color :

Red

Power Rating :

1W

Temperature - Test :

25°C

Voltage - Rated DC :

2.3V

Current - Test :

350mA

Supplier Device Package :

SMD

Lead Free :

Lead Free

Max Operating Temperature :

85°C

Height :

1.52mm

Lens Color :

Clear

Wavelength :

625nm 620nm ~ 630nm
