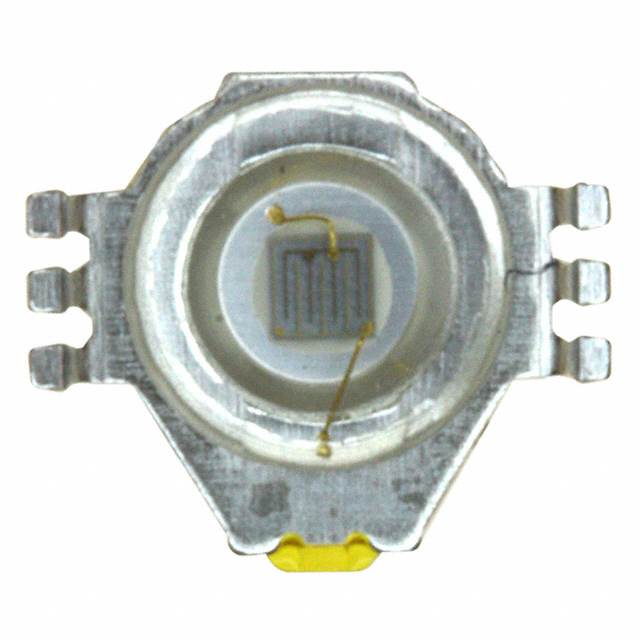

OVTL01LGAB

Manufacturer :

TT Electronics

Product Category :

Luminous Flux :

12 lm

Dominant Wavelength :

460 nm

Temperature - Test :

25°C

Current - Max :

350mA

RoHS Status :

RoHS Compliant

Viewing Angle :

135°

Depth :

4.2mm

Mounting Type :

Surface Mount

Supplier Device Package :

SMD

Thermal Resistance of Package :

2°C/W

Flux @ Current/Temperature - Test :

12lm Typ

Length :

5mm

Min Operating Temperature :

-50°C

Voltage - Forward (Vf) (Typ) :

3.4V

Luminous Intensity :

5 mcd

Forward Voltage :

3.4V

Max Current Rating :

350mA

Lens Style :

Clear

Number of Elements :

1

Packaging :

Tape and Reel (TR)

Height Seated (Max) :

0.064 1.62mm

Voltage - Rated DC :

3.4V

Current - Test :

350mA

Lens Color :

Clear

Published :

2007

Lead Free :

Lead Free

Forward Current :

350mA

Illumination Color :

Blue

Reverse Voltage :

5V

Size / Dimension :

0.197Dia 5.00mm

Color :

Blue

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Mount :

Surface Mount

Number of Pins :

6

Package / Case :

6-SMD, Gull Wing

Wavelength :

460nm 455nm ~ 465nm

Nominal Supply Current :

350mA

Max Operating Temperature :

85°C

Power Rating :

1W

Diameter :

4.4mm

Lumens/Watt @ Current - Test :

10 lm/W

Input Current :

350mA
