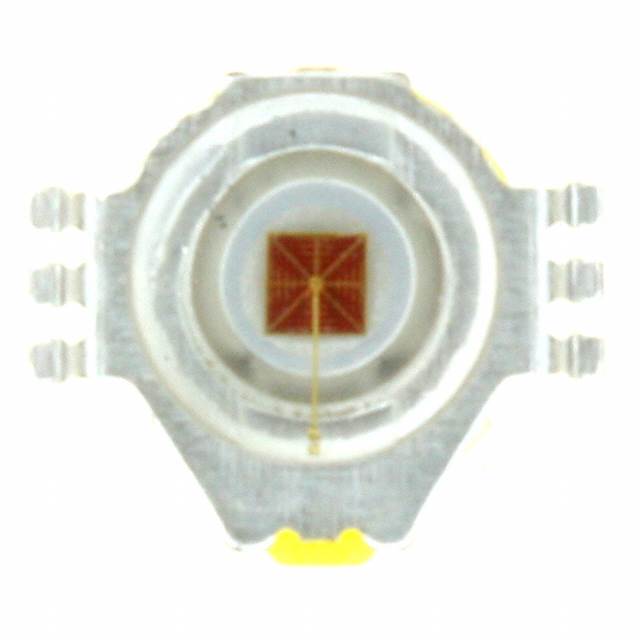

OVTL01LGAR

Manufacturer :

TT Electronics

Product Category :

Luminous Flux :

45 lm

Mount :

Surface Mount

Max Operating Temperature :

85°C

Illumination Color :

Red

Package / Case :

6-SMD, Gull Wing

Supplier Device Package :

SMD

Temperature - Test :

25°C

Lens Color :

Clear

Current - Test :

350mA

Flux @ Current/Temperature - Test :

45lm Typ

Forward Current :

350mA

Lens Style :

Diffused

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Wavelength :

625nm 620nm ~ 630nm

Diameter :

4.4mm

Length :

6mm

Forward Voltage :

2.3V

Lumens/Watt @ Current - Test :

56 lm/W

Nominal Supply Current :

350mA

Mounting Type :

Surface Mount

Height Seated (Max) :

0.064 1.62mm

Published :

2009

Voltage - Rated DC :

2.3V

Thermal Resistance of Package :

2°C/W

Min Operating Temperature :

-50°C

Number of Pins :

6

Current - Max :

350mA

Height :

1.52mm

Max Current Rating :

350mA

Packaging :

Tape and Reel (TR)

Lead Free :

Lead Free

Viewing Angle :

135°

Size / Dimension :

0.197Dia 5.00mm

RoHS Status :

RoHS Compliant

Voltage - Forward (Vf) (Typ) :

2.3V

Input Current :

350mA

Power Rating :

1W

Color :

Red

Luminous Intensity :

8.5 mcd
