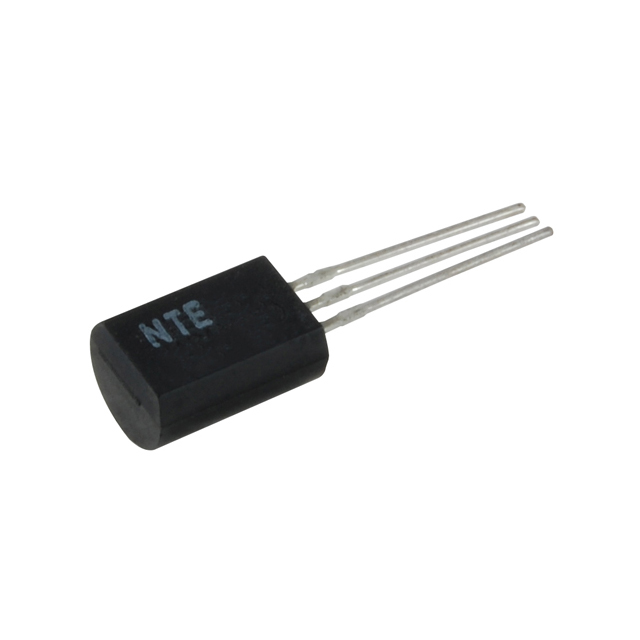

NTE293MP

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Series :

-

Reach Compliance Code :

Unknown

Power - Max :

1 W

Qualification Status :

Not Qualified

ECCN Code :

EAR99

Number of Elements :

2

Collector-Emitter Voltage-Max :

50 V

Product Status :

Active

Package Shape :

Round

Vce Saturation (Max) @ Ib, Ic :

400mV @ 50mA, 500mA

Terminal Position :

BOTTOM

Package :

Bag

Supplier Device Package :

TO-92L

Current - Collector Cutoff (Max) :

100nA (ICBO)

Transistor Application :

AMPLIFIER

Additional Feature :

MATCHED PAIR OF NTE293

Subcategory :

Other Transistors

Number of Terminals :

3

JEDEC-95 Code :

TO-92

Operating Temperature :

150°C (TJ)

DC Current Gain-Min (hFE) :

120

JESD-30 Code :

O-PBCY-W3

Configuration :

SEPARATE, 2 ELEMENTS

Package / Case :

TO-226-3, TO-92-3 Long Body

Voltage - Collector Emitter Breakdown (Max) :

50 V

Surface Mount :

No

HTS Code :

8541.21.00.75

Polarity/Channel Type :

NPN

Transistor Type :

NPN

Pin Count :

3

Collector Current-Max (IC) :

1 A

Mounting Type :

Through Hole

DC Current Gain (hFE) (Min) @ Ic, Vce :

120 @ 500mA, 10V

Current - Collector (Ic) (Max) :

1 A

Transistor Element Material :

SILICON

Frequency - Transition :

200MHz

Manufacturer :

NTE Electronics

Terminal Form :

Wire
