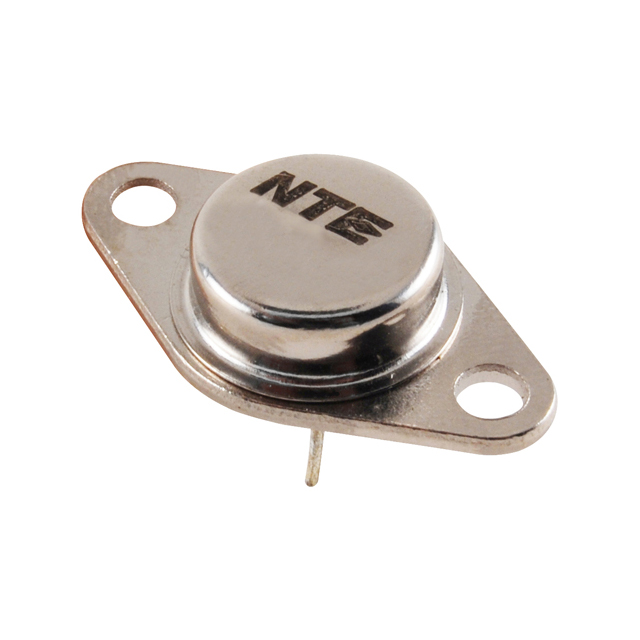

NTE274

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Power Dissipation Ambient-Max :

50 W

Power Dissipation-Max (Abs) :

50 W

Vce Saturation (Max) @ Ib, Ic :

3V @ 40mA, 4A

Frequency - Transition :

-

Case Connection :

COLLECTOR

Surface Mount :

No

Supplier Device Package :

TO-66

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

DC Current Gain (hFE) (Min) @ Ic, Vce :

750 @ 2A, 3V

DC Current Gain-Min (hFE) :

100

Number of Terminals :

2

Configuration :

Single

Polarity/Channel Type :

NPN

Subcategory :

Other Transistors

Operating Temperature :

-65°C ~ 200°C (TJ)

Qualification Status :

Not Qualified

Transistor Element Material :

SILICON

Terminal Form :

PIN/PEG

Current - Collector (Ic) (Max) :

4 A

Current - Collector Cutoff (Max) :

500μA

Package / Case :

TO-213AA, TO-66-2

Package :

Bag

Reach Compliance Code :

Unknown

Manufacturer :

NTE Electronics

ECCN Code :

EAR99

Voltage - Collector Emitter Breakdown (Max) :

80 V

Transistor Application :

SWITCHING

Terminal Position :

BOTTOM

Product Status :

Active

Collector-Emitter Voltage-Max :

80 V

Power - Max :

50 W

JESD-30 Code :

O-MBFM-P2

JEDEC-95 Code :

TO-66

Transistor Type :

NPN - Darlington

Mounting Type :

Through Hole

Package Shape :

Round

Series :

-

Collector Current-Max (IC) :

4 A

Number of Elements :

1
