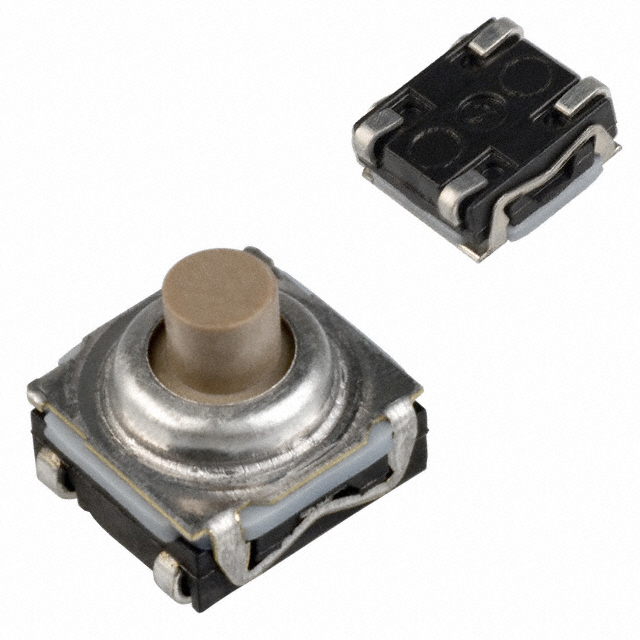

KSC541J

Manufacturer :

C&K

Product Category :

Outline :

6.20mm x 6.20mm

Lead Free :

Contains Lead

Package / Case :

SMD/SMT

Switch Travel :

0.25mm, 0.50mm

Actuator Type :

Standard

Packaging :

Cut Tape (CT)

Feature :

Sealed

Termination Style :

J Lead

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

KSC5

Operating Temperature :

-40°C~85°C

Depth :

6.8mm

Termination :

Gull wing

Max Operating Temperature :

85°C

Illumination Type :

Non-Illuminated

Published :

2003

Throw Configuration :

SPST

RoHS Status :

Non-RoHS Compliant

Voltage - Rated DC :

32V

Contact Material :

Silver

Mounting Type :

Surface Mount

Ratings :

IP50

Ingress Protection :

IP50 - Dust Protected

Circuit :

SPST-NO

Actuator Height off PCB, Vertical :

5.60mm

Max Current Rating :

50mA

Length :

6.2mm

Actuator Orientation :

Top or Side Actuated

Illumination :

Non-Illuminated

Operating Force :

300gf

Min Operating Temperature :

-40°C

Contact Current Rating :

50mA

Current Rating :

50mA

Power Rating :

1W

Contact Rating @ Voltage :

0.05A @ 32VDC

Mechanical Life :

10,000 Cycles

Mount :

Surface Mount

Orientation :

Straight

Switch Function :

Off-Mom

Contact Plating :

Silver

Width :

6.2mm
