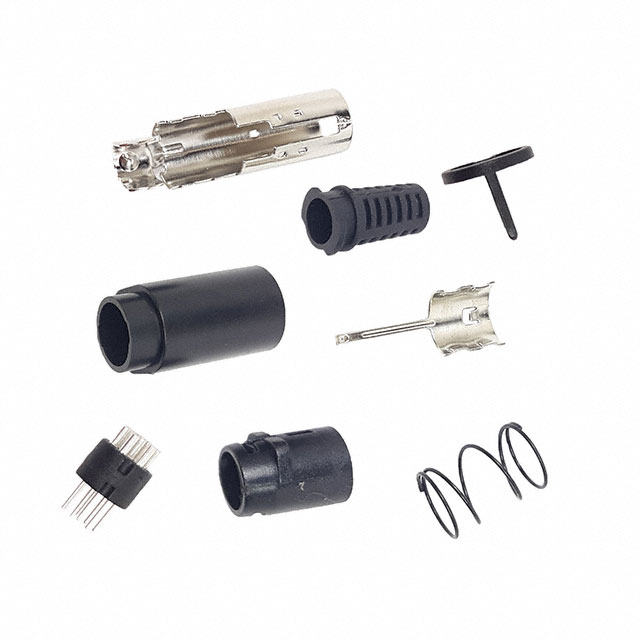

KMDLAX-8P
Or copy the link below:
- Mfr.Part #
- KMDLAX-8P
- Manufacturer
- Kycon
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG MALE MINI DIN 8POS SLD
- Stock
- 2,773
- In Stock ：
- 2,773
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Kycon
- Product Category :
- Circular Connector Assemblies
- Insert Material :
- Polyamide (PA), Nylon
- Packaging :
- Bulk
- Color :
- Black
- Current Rating (Amps) :
- 1A 2A
- Shell Material :
- Polyacrylonitrile Butadiene Styrene (ABS)
- Shielding :
- Shielded
- Number of Ports :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Free Hanging (In-Line)
- Option :
- GENERAL PURPOSE
- Body Length or Diameter :
- 0.512 inch
- MIL Conformance :
- No
- Fastening Type :
- Snap-In
- Polarization Key :
- POLAR PIN POSITION
- Voltage - Rated DC :
- 12V
- Backshell Material, Plating :
- Polyacrylonitrile Butadiene Styrene (ABS)
- Contact Gender :
- Male
- Total Number of Contacts :
- 8
- Durability :
- 1500 Cycles
- Number of Positions :
- 8
- Orientation :
- Keyed
- Series :
- KMDLAX
- Termination :
- Solder Cup
- Factory Lead Time :
- 20 Weeks
- Feature :
- Backshell, Strain Relief
- EMI Shielded :
- No
- Operating Temperature :
- -25°C~80°C
- Contact Finish - Mating :
- Silver
- Plating :
- Nickel
- Connector Type :
- Plug, Male Pins
- Radiation Hardening :
- No
- Insulation Resistance :
- 50000000Ohm
- Mount :
- CABLE
- Cable Opening :
- 0.217 (5.50mm)
- Body Depth :
- 0.256 inch
- Reference Standard :
- UL
- Voltage - Rated :
- 100VAC 12VDC
- Applications :
- Audio, Video
- Material Flammability Rating :
- UL94 HB
- Current Rating :
- 2A
- Contact Style :
- RND PIN-SKT
- DIN Conformance :
- yes
- Reliability :
- COMMERCIAL
- Shell Size - Insert :
- Mini DIN
- IEC Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Dielectric Withstanding Voltage :
- 250VAC V
- Contact Material :
- Brass
- Published :
- 2012
- Datasheets
- KMDLAX-8P
KMDLAX-8P Documents
Plug, Male Pins Polyacrylonitrile Butadiene Styrene (ABS) Free Hanging (In-Line) 8 Positions Solder Cup Silver Bulk Keyed Snap-In
KMDLAX-8P Overview
It comes in Plug, Male Pins packaging.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the KMDLAX Series of products.Its Backshell, Strain Relief feature renders it more powerful in many ways.The part is mounted by Cable.The device runs in -25°C~80°C Operating Temperature.
KMDLAX-8P Features
KMDLAX series
KMDLAX-8P Applications
There are a lot of Kycon, Inc.
KMDLAX-8P Circular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
