KMDLAX-6P

Share

Or copy the link below:

Mfr.Part #
KMDLAX-6P
Manufacturer
Kycon
Package / Case
Datasheet
Download
Description
CONN PLUG MALE MINI DIN 6POS SLD
Stock
371
In Stock :
371

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Kycon
Product Category :
Circular Connector Assemblies
Packaging :
Bulk
Total Number of Contacts :
6
Shell Size - Insert :
Mini DIN
Polarization Key :
POLAR PIN POSITION
Plating :
Nickel
Color :
Black
DIN Conformance :
yes
Feature :
Backshell, Strain Relief
Wire Gauge (Min) :
30 AWG
Cable Opening :
0.217 (5.50mm)
EMI Shielded :
No
IEC Conformance :
No
Published :
2012
Series :
KMDLAX
Voltage - Rated DC :
12V
Body Length or Diameter :
0.512 inch
Contact Gender :
Male
RoHS Status :
RoHS Compliant
Contact Style :
RND PIN-SKT
Voltage - Rated :
100VAC 12VDC
Option :
GENERAL PURPOSE
Reference Standard :
UL
Current Rating :
2A
ECCN Code :
EAR99
Reliability :
COMMERCIAL
Shell Material :
Polyacrylonitrile Butadiene Styrene (ABS)
Contact Finish - Mating :
Silver
Dielectric Withstanding Voltage :
250VAC V
Fastening Type :
Snap-In
JESD-609 Code :
e4
Durability :
1500 Cycles
Insert Material :
Polyamide (PA), Nylon
Connector Type :
Plug, Male Pins
Applications :
Audio, Video
Wire Gauge (Max) :
26 AWG
Termination :
Solder Cup
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Operating Temperature :
-25°C~80°C
Shielding :
Shielded
Material Flammability Rating :
UL94 HB
Insulation Resistance :
50000000Ohm
MIL Conformance :
No
Factory Lead Time :
20 Weeks
Number of Positions :
6
Number of Ports :
1
Current Rating (Amps) :
1A 2A
Mounting Type :
Free Hanging (In-Line)
Radiation Hardening :
No
Mount :
CABLE
Backshell Material, Plating :
Polyacrylonitrile Butadiene Styrene (ABS)
Contact Material :
Brass
Orientation :
Keyed
Introducing Circular Connector Assemblies Kycon KMDLAX-6P from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-25°C~80°C, Mounting Type:Free Hanging (In-Line), KMDLAX-6P pinout, KMDLAX-6P datasheet PDF, KMDLAX-6P amp .Beyond Circular Connector Assemblies Kycon KMDLAX-6P ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

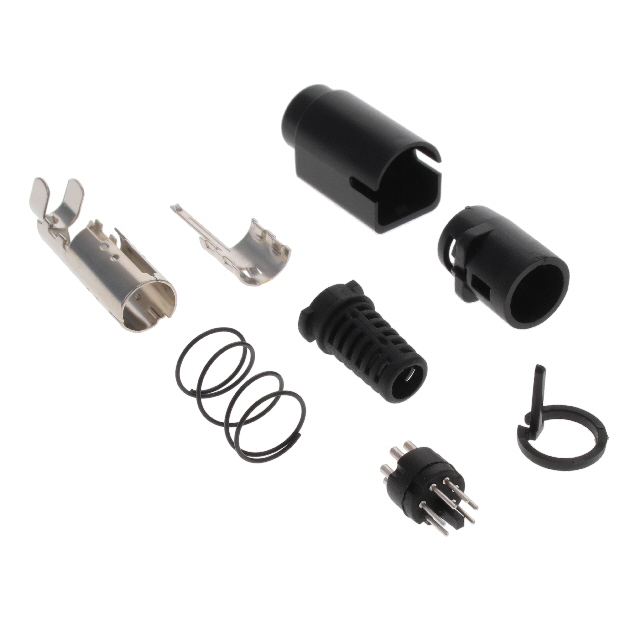

Kycon KMDLAX-6P


Plug, Male Pins Polyacrylonitrile Butadiene Styrene (ABS) Free Hanging (In-Line) 6 Positions Solder Cup Silver Bulk Keyed Snap-In

KMDLAX-6P Overview


The packaging contains Plug, Male Pins.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number KMDLAX belongs to the KMDLAX Series.In many ways, it is more powerful due to its Backshell, Strain Relief feature.There is a Cable mount on the part.This device operates at a temperature of -25°C~80°C.

KMDLAX-6P Features


KMDLAX series


KMDLAX-6P Applications


There are a lot of Kycon, Inc.
KMDLAX-6P Circular Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
