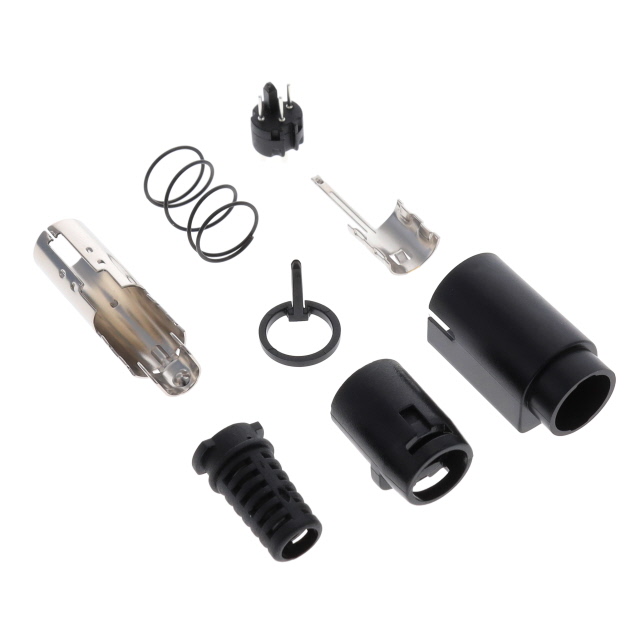

KMDLAX-3P
Or copy the link below:
- Mfr.Part #
- KMDLAX-3P
- Manufacturer
- Kycon
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG MALE MINI DIN 3POS SLD
- Stock
- 23
- In Stock ：
- 23
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Kycon
- Product Category :
- Circular Connector Assemblies
- Series :
- KMDLAX
- ECCN Code :
- EAR99
- Reference Standard :
- UL
- Dielectric Withstanding Voltage :
- 250VAC V
- Contact Gender :
- Male
- Voltage - Rated DC :
- 12V
- Applications :
- Audio, Video
- DIN Conformance :
- yes
- Orientation :
- Keyed
- Mount :
- CABLE
- Cable Opening :
- 0.217 (5.50mm)
- Voltage - Rated :
- 100VAC 12VDC
- Current Rating (Amps) :
- 1A 2A
- MIL Conformance :
- No
- Radiation Hardening :
- No
- Contact Finish - Mating :
- Silver
- EMI Shielded :
- No
- Body Length or Diameter :
- 0.512 inch
- Plating :
- Nickel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Factory Lead Time :
- 20 Weeks
- Shielding :
- Shielded
- Shell Size - Insert :
- Mini DIN
- Polarization Key :
- POLAR PIN POSITION
- Material Flammability Rating :
- UL94 HB
- Contact Material :
- Brass
- Fastening Type :
- Snap-In
- Connector Type :
- Plug, Male Pins
- Number of Positions :
- 3
- Packaging :
- Bulk
- Body Depth :
- 0.256 inch
- Termination :
- Solder Cup
- Current Rating :
- 2A
- Operating Temperature :
- -25°C~80°C
- Shell Material :
- Polyacrylonitrile Butadiene Styrene (ABS)
- Published :
- 2011
- RoHS Status :
- RoHS Compliant
- Number of Ports :
- 1
- Backshell Material, Plating :
- Polyacrylonitrile Butadiene Styrene (ABS)
- Mounting Type :
- Free Hanging (In-Line)
- Option :
- GENERAL PURPOSE
- Total Number of Contacts :
- 3
- Insert Material :
- Polyamide (PA), Nylon
- Feature :
- Backshell, Strain Relief
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 50000000Ohm
- Contact Style :
- RND PIN-SKT
- Durability :
- 1500 Cycles
- Color :
- Black
- JESD-609 Code :
- e4
- Datasheets
- KMDLAX-3P
Plug, Male Pins Polyacrylonitrile Butadiene Styrene (ABS) Free Hanging (In-Line) 3 Positions Solder Cup Silver Bulk Keyed Snap-In
KMDLAX-3P Overview
Packaging is Plug, Male Pins.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the KMDLAX Series, it can be found in this category.With its Backshell, Strain Relief feature, it is more powerful in many ways.In this case, Cable mounts the part.The device is operating at -25°C~80°C Operating Temperature.
KMDLAX-3P Features
KMDLAX series
KMDLAX-3P Applications
There are a lot of Kycon, Inc.
KMDLAX-3P Circular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
