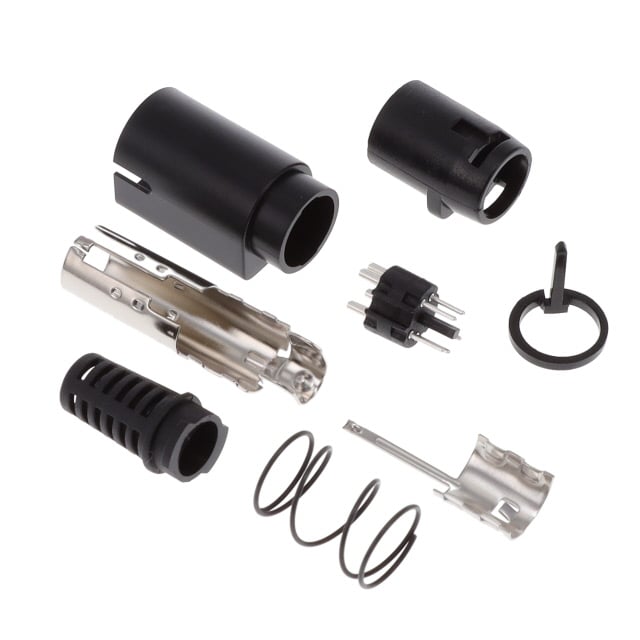

KMDLAX-5P
Or copy the link below:
- Mfr.Part #
- KMDLAX-5P
- Manufacturer
- Kycon
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG MALE MINI DIN 5POS SLD
- Stock
- 1,298
- In Stock ：
- 1,298
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Kycon
- Product Category :
- Circular Connector Assemblies
- Current Rating :
- 2A
- Cable Opening :
- 0.217 (5.50mm)
- Fastening Type :
- Snap-In
- Shell Size - Insert :
- Mini DIN
- Polarization Key :
- POLAR PIN POSITION
- Connector Type :
- Plug, Male Pins
- Reliability :
- COMMERCIAL
- Packaging :
- Bulk
- Orientation :
- Keyed
- Applications :
- Audio, Video
- EMI Shielded :
- No
- IEC Conformance :
- No
- JESD-609 Code :
- e4
- Insert Material :
- Polyamide (PA), Nylon
- Backshell Material, Plating :
- Polyacrylonitrile Butadiene Styrene (ABS)
- Contact Gender :
- Male
- Series :
- KMDLAX
- Operating Temperature :
- -25°C~80°C
- Voltage - Rated :
- 100VAC 12VDC
- RoHS Status :
- RoHS Compliant
- Option :
- GENERAL PURPOSE
- Total Number of Contacts :
- 5
- Factory Lead Time :
- 20 Weeks
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating (Amps) :
- 1A 2A
- Color :
- Black
- Voltage - Rated DC :
- 12V
- Shielding :
- Shielded
- Number of Positions :
- 5
- Contact Material :
- Brass
- Termination :
- Solder Cup
- DIN Conformance :
- yes
- Plating :
- Nickel
- Mount :
- CABLE
- Mounting Type :
- Free Hanging (In-Line)
- Shell Material :
- Polyacrylonitrile Butadiene Styrene (ABS)
- Contact Finish - Mating :
- Silver
- Contact Style :
- RND PIN-SKT
- Material Flammability Rating :
- UL94 HB
- Feature :
- Backshell, Strain Relief
- Reference Standard :
- UL
- Radiation Hardening :
- No
- ECCN Code :
- EAR99
- Number of Ports :
- 1
- Datasheets
- KMDLAX-5P
KMDLAX-5P Documents
Plug, Male Pins Polyacrylonitrile Butadiene Styrene (ABS) Free Hanging (In-Line) 5 Positions Solder Cup Silver Bulk Keyed Snap-In
KMDLAX-5P Overview
The packaging contains Plug, Male Pins.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number KMDLAX belongs to the KMDLAX Series.In many ways, it is more powerful due to its Backshell, Strain Relief feature.There is a Cable mount on the part.This device operates at a temperature of -25°C~80°C.
KMDLAX-5P Features
KMDLAX series
KMDLAX-5P Applications
There are a lot of Kycon, Inc.
KMDLAX-5P Circular Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
