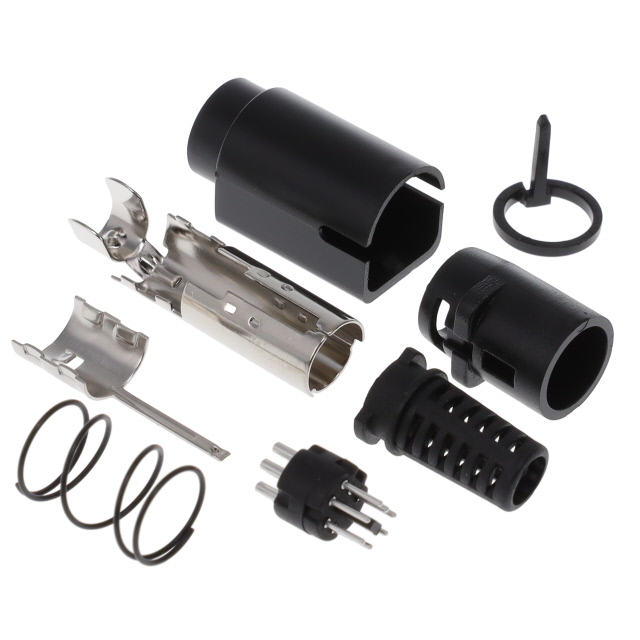

KMDLAX-7P

Manufacturer :

Kycon

Product Category :

Circular Connector Assemblies

Current Rating :

2A

RoHS Status :

RoHS Compliant

Reference Standard :

UL

Voltage - Rated :

100VAC 12VDC

Contact Style :

RND PIN-SKT

Number of Positions :

7

Termination :

Solder Cup

Series :

KMDLAX

Backshell Material, Plating :

Polyacrylonitrile Butadiene Styrene (ABS)

IEC Conformance :

No

Shell Material :

Polyacrylonitrile Butadiene Styrene (ABS)

Durability :

1500 Cycles

Connector Type :

Plug, Male Pins

Shell Size - Insert :

Mini DIN

Contact Gender :

Male

Color :

Black

Packaging :

Bulk

Voltage - Rated DC :

12V

Material Flammability Rating :

UL94 HB

ECCN Code :

EAR99

JESD-609 Code :

e4

Body Depth :

0.256 inch

Radiation Hardening :

No

Total Number of Contacts :

7

Mounting Type :

Free Hanging (In-Line)

MIL Conformance :

No

Insulation Resistance :

50000000Ohm

Option :

GENERAL PURPOSE

Factory Lead Time :

20 Weeks

Current Rating (Amps) :

1A 2A

Orientation :

Keyed

Body Length or Diameter :

0.512 inch

Contact Material :

Brass

Reliability :

COMMERCIAL

DIN Conformance :

yes

Dielectric Withstanding Voltage :

250VAC V

Operating Temperature :

-25°C~80°C

Feature :

Backshell, Strain Relief

Cable Opening :

0.217 (5.50mm)

Shielding :

Shielded

HTS Code :

8536.69.40.20

Number of Ports :

1

Polarization Key :

POLAR PIN POSITION

Contact Finish - Mating :

Silver

Plating :

Nickel

Insert Material :

Polyamide (PA), Nylon

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Snap-In

EMI Shielded :

No

Mount :

CABLE

Applications :

Audio, Video
