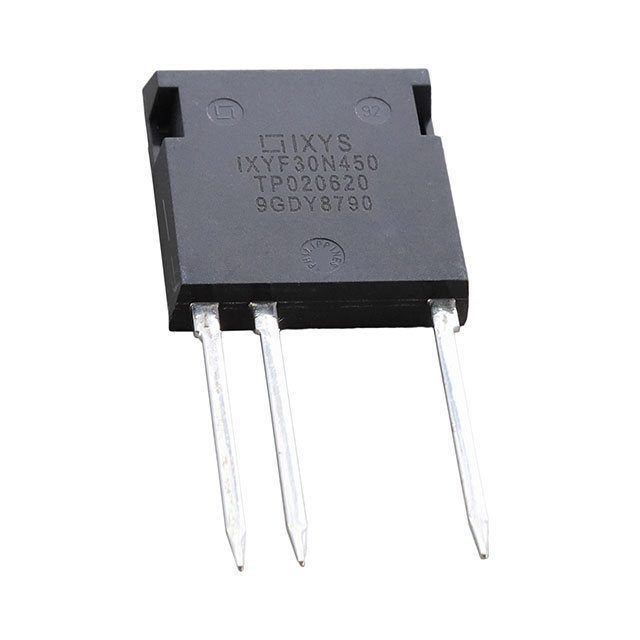

IXYF30N450

Manufacturer :

Littelfuse

Product Category :

Transistors - IGBTs - Single

Product Type :

IGBT Transistors

IGBT Type :

--

Collector Emitter Voltage (VCEO) :

3.9V

Configuration :

Single

Technology :

Si

Current - Collector Pulsed (Icm) :

190A

Package :

Tube

Vce(on) (Max) @ Vge, Ic :

3.9V @ 15V, 30A

Manufacturer :

IXYS

RoHS Status :

ROHS3 Compliant

Published :

2013

Reach Compliance Code :

Compliant

Brand :

IXYS

Max Power Dissipation :

230W

Product Status :

Active

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Product Category :

IGBT Transistors

Maximum Operating Temperature :

+ 150 C

Collector Emitter Breakdown Voltage :

4.5kV

Power - Max :

230W

Mounting Type :

Through Hole

Voltage - Collector Emitter Breakdown (Max) :

4500V

Operating Temperature :

-55°C~150°C TJ

RoHS :

Details

Minimum Operating Temperature :

- 55 C

Package / Case :

ISOPLUSi5-Pak™

Tradename :

XPT

Td (on/off) @ 25°C :

38ns/168ns

Mount :

Through Hole

Supplier Device Package :

ISOPLUS i4-PAC™

Base Product Number :

IXYF30

Series :

XPT™

Packaging :

Tube

Subcategory :

IGBTs

Switching Energy :

--

Max Collector Current :

23A

Mounting Style :

Through Hole

Input Type :

Standard

Current - Collector (Ic) (Max) :

23A

Gate Charge :

88nC

Test Condition :

960V, 30A, 15 Ω, 15V
