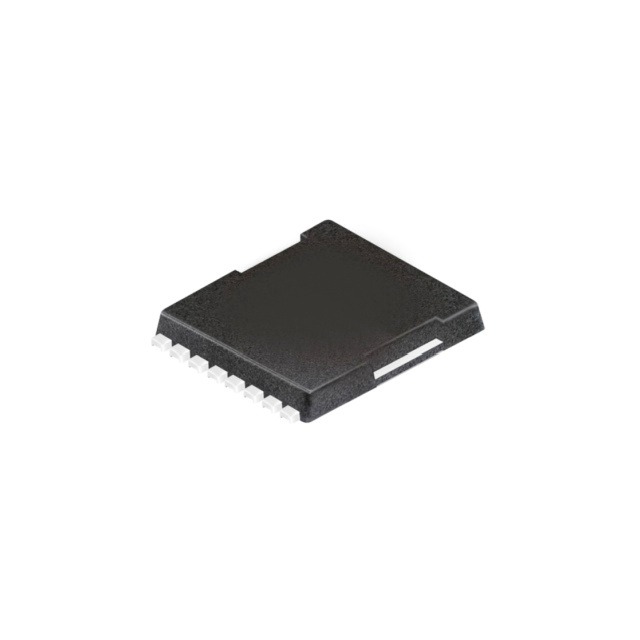

IPT60R090CFD7XTMA1

Manufacturer :

Infineon Technologies

Product Category :

Transistors - FETs, MOSFETs - Single

Number of Channels :

1 Channel

Product Type :

MOSFET

Input Capacitance (Ciss) (Max) @ Vds :

1752 pF @ 400 V

Gate Charge (Qg) (Max) @ Vgs :

42 nC @ 10 V

Package / Case :

8-PowerSFN

Power Dissipation (Max) :

160W (Tc)

Vgs(th) (Max) @ Id :

4.5V @ 470μA

Current - Continuous Drain (Id) @ 25°C :

28A (Tc)

Operating Temperature :

-55°C ~ 150°C (TJ)

Mounting Type :

Surface Mount

Drain to Source Voltage (Vdss) :

600 V

Manufacturer :

Infineon

Maximum Operating Temperature :

+ 150 C

Base Product Number :

IPT60R090

Power Dissipation :

160

Rds On (Max) @ Id, Vgs :

90mOhm @ 9.3A, 10V

Series :

CoolMOS? CFD7

FET Type :

N-Channel

Mounting Style :

SMD/SMT

FET Feature :

-

Supplier Device Package :

PG-HSOF-8-1

Product Status :

Active

Vgs (Max) :

±20V

Minimum Operating Temperature :

- 55 C

Subcategory :

MOSFETs

Drive Voltage (Max Rds On, Min Rds On) :

10V

Product Category :

MOSFET

RoHS :

Details

Channel Mode :

Enhancement

Package :

Digi-Reel?

Brand :

Infineon Technologies

Continuous Drain Current Id :

28

Transistor Polarity :

N-Channel

Packaging :

MouseReel
