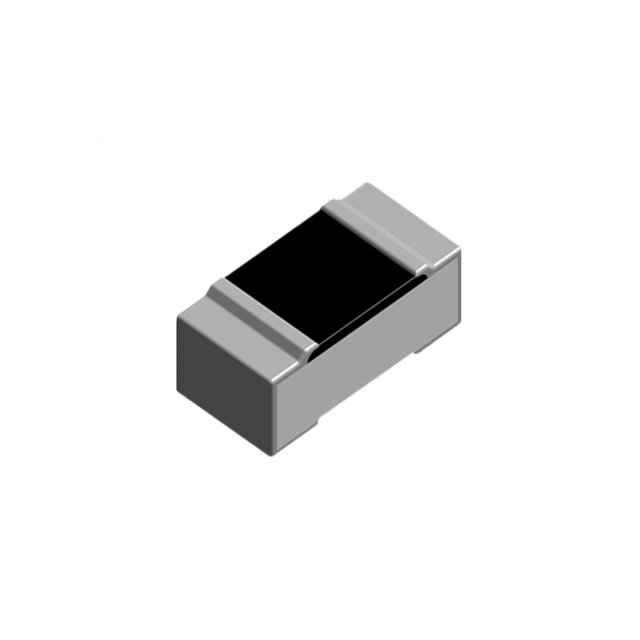

ERA-1AEB121C

Manufacturer :

Panasonic

Product Category :

Chip Resistor - Surface Mount

Minimum Operating Temperature :

- 55 C

Construction :

Chip

Length :

0.6 mm

Product Type :

Thin Film Resistors

Base Product Number :

ERA-1AE

Package Width :

0.3 mm

Termination Style :

SMD/SMT

Mounting Style :

PCB Mount

Package Length :

0.6 mm

Ratings :

-

JESD-609 Code :

e3

Product Category :

Thin Film Resistors - SMD

Failure Rate :

-

Resistor Type :

FIXED RESISTOR

Packing Method :

TAPE, PRESSED

Size / Dimension :

0.024" L x 0.012" W (0.60mm x 0.30mm)

Mounting Feature :

Surface Mount

Series :

ERA-1A

Maximum Operating Temperature :

+ 155 C

Type :

High Reliability Metal Film Chip Resistor

Height - Seated (Max) :

0.010" (0.26mm)

Subcategory :

Resistors

RoHS :

Details

Brand :

Panasonic

Package Height :

0.23 mm

Surface Mount :

yes

Pbfree Code :

yes

Working Voltage :

25 V

Rated Temperature :

85 °C

Tolerance :

±0.1%

Reference Standard :

AEC-Q200

Reach Compliance Code :

Compliant

Width :

0.3 mm

Packaging :

MouseReel

Composition :

Thin Film

Package :

Digi-Reel?

Package Shape :

RECTANGULAR PACKAGE

Voltage Rating :

25 V

Product :

Thin Film Resistors SMD

Terminal Finish :

Tin (Sn) - with Nickel (Ni) barrier

Number of Terminations :

2

Qualification :

AEC-Q200

Power (Watts) :

0.05W, 1/20W

Package / Case :

0201 (0603 Metric)

Height :

0.23 mm

Temperature Coefficient :

±25ppm/°C

Manufacturer :

Panasonic

Size Code :

0201

Technology :

Thin Film

Features :

-

Supplier Device Package :

0201

Number of Terminals :

2

Product Status :

Active

Rated Power Dissipation (P) :

0.05 W

Operating Temperature Range :

- 55 C to + 155 C

Additional Feature :

STANDARD: IEC60115-8

Power Rating :

50 mW (1/20 W)

Resistance :

120 Ohms

Operating Temperature :

-55°C ~ 155°C

Terminal Shape :

WRAPAROUND
