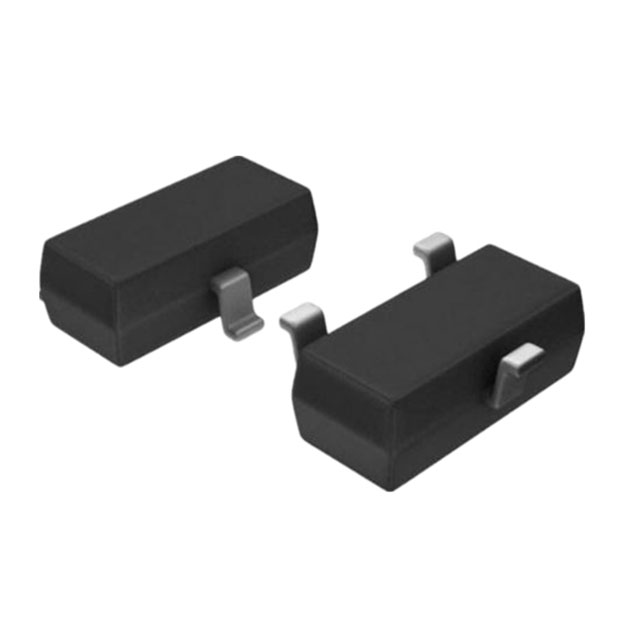

BC847A

Manufacturer :

MDD

Product Category :

Transistors - Bipolar (BJT) - Single

Number of Elements :

1

Current - Collector (Ic) (Max) :

100mA

DC Current Gain (hFE) (Min) @ Ic, Vce :

110 @ 2mA 5V

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-55°C~150°C TJ

Transistor Type :

NPN

JESD-609 Code :

e3

Configuration :

Single

Peak Reflow Temperature (Cel) :

260

Power - Max :

225mW

Time@Peak Reflow Temperature-Max (s) :

10

Transistor Application :

SWITCHING

Transistor Element Material :

SILICON

ECCN Code :

EAR99

Qualification Status :

Not Qualified

Mounting Type :

Surface Mount

RoHS Status :

ROHS3 Compliant

Transition Frequency :

100MHz

Frequency - Transition :

100MHz

Terminal Finish :

Matte Tin (Sn)

Vce Saturation (Max) @ Ib, Ic :

500mV @ 5mA, 100mA

Packaging :

Tape and Reel (TR)

Published :

2005

Terminal Position :

Dual

Base Part Number :

BC847

Package / Case :

TO-236-3, SC-59, SOT-23-3

Factory Lead Time :

12 Weeks

Pin Count :

3

Power Dissipation-Max (Abs) :

0.225W

JESD-30 Code :

R-PDSO-G3

Surface Mount :

yes

Number of Terminations :

3

Current - Collector Cutoff (Max) :

100nA

Polarity/Channel Type :

NPN

Voltage - Collector Emitter Breakdown (Max) :

45V

Terminal Form :

Gull wing
