BC846BW
Or copy the link below:
- Mfr.Part #
- BC846BW
- Manufacturer
- Diotec Semiconductor
- Package / Case
- SC-70, SOT-323
- Datasheet
- Download
- Description
- TRANS NPN 65V 0.1A SOT323
- Stock
- 3,000
- In Stock ：
- 3,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Diotec Semiconductor
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Number of Elements :
- 1
- Voltage - Rated DC :
- 65V
- Length :
- 2.2mm
- Mount :
- Surface Mount
- Published :
- 2007
- Max Power Dissipation :
- 200mW
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Collector Current :
- 100mA
- Radiation Hardening :
- No
- Current Rating :
- 100mA
- Time@Peak Reflow Temperature-Max (s) :
- 40
- Operating Temperature :
- -65°C~150°C TJ
- ECCN Code :
- EAR99
- Element Configuration :
- Single
- JESD-609 Code :
- e3
- Pin Count :
- 3
- Base Part Number :
- BC846
- Collector Emitter Breakdown Voltage :
- 65V
- Power Dissipation :
- 200mW
- Factory Lead Time :
- 15 Weeks
- Collector Emitter Voltage (VCEO) :
- 65V
- REACH SVHC :
- No SVHC
- Transistor Application :
- SWITCHING
- Mounting Type :
- Surface Mount
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 200 @ 2mA 5V
- Transistor Type :
- NPN
- Weight :
- 6.010099mg
- Number of Pins :
- 3
- Height :
- 1mm
- Contact Plating :
- Tin
- Current - Collector Cutoff (Max) :
- 20nA ICBO
- Number of Terminations :
- 3
- Polarity/Channel Type :
- NPN
- RoHS Status :
- ROHS3 Compliant
- Frequency :
- 300MHz
- Gain Bandwidth Product :
- 300MHz
- Emitter Base Voltage (VEBO) :
- 6V
- Lead Free :
- Lead Free
- Collector Emitter Saturation Voltage :
- 600mV
- Vce Saturation (Max) @ Ib, Ic :
- 600mV @ 5mA, 100mA
- Transition Frequency :
- 300MHz
- Packaging :
- Tape and Reel (TR)
- Pbfree Code :
- yes
- Terminal Form :
- Gull wing
- Peak Reflow Temperature (Cel) :
- 260
- Terminal Position :
- Dual
- Collector Base Voltage (VCBO) :
- 80V
- Max Breakdown Voltage :
- 65V
- Transistor Element Material :
- SILICON
- Width :
- 1.35mm
- Package / Case :
- SC-70, SOT-323
- Datasheets

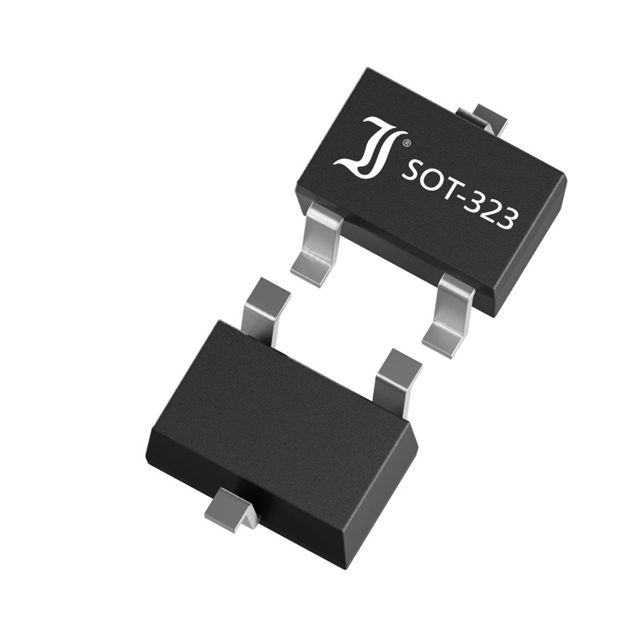

- BC846BW
NPN -65°C~150°C TJ 20nA ICBO 1 Elements 3 Terminations SILICON NPN SC-70, SOT-323 Tape & Reel (TR) Surface Mount
BC846BW-7-F Overview
DC current gain' is equal to the ratio of the collector current to the base current, something like Ic/Ib, and this device has 200 @ 2mA 5V DC current gain.As it features a collector emitter saturation voltage of 600mV, it allows for maximum design flexibility.VCE saturation indicates Ic is at maximum level (saturated), whereas vce saturation (Max) indicates there is no saturation.Keeping the emitter base voltage at 6V can result in a high level of efficiency.According to definition, current rating describes the maximum current a fuse can carry indefinitely without deteriorating too much, and this device has no current rating.There is a transition frequency of 300MHz in the part.Single BJT transistor can be broken down at a voltage of 65V volts.When collector current reaches its maximum, it can reach 100mA volts.
BC846BW-7-F Features
the DC current gain for this device is 200 @ 2mA 5V
a collector emitter saturation voltage of 600mV
the vce saturation(Max) is 600mV @ 5mA, 100mA
the emitter base voltage is kept at 6V
the current rating of this device is 100mA
a transition frequency of 300MHz
BC846BW-7-F Applications
There are a lot of Diodes Incorporated
BC846BW-7-F applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
