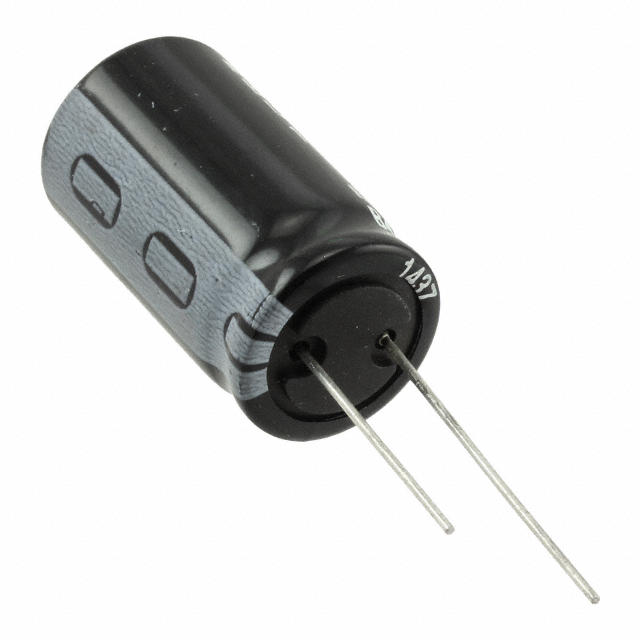

B43858C4476M

Manufacturer :

EPCOS (TDK)

Product Category :

Aluminum Electrolytic Capacitors

Packing Method :

Bulk

Ripple Current :

1A

Packaging :

Bulk

Number of Terminations :

2

ECCN Code :

EAR99

Life (Hours) :

5000 hours

Height - Seated (Max) :

1.319 (33.50mm)

Series :

B43858

Tan Delta :

0.2

Mount :

Through Hole

Lead Pitch :

7.493mm

JESD-609 Code :

e3

Ratings :

--

Terminal Finish :

Matte Tin (Sn)

Terminal Pitch :

7.5mm

Height :

31.5mm

Lifetime @ Temp. :

5000 Hrs @ 105°C

Lead Spacing :

0.295 (7.50mm)

Operating Temperature :

-25°C ~ 105°C

Terminal Shape :

Wire

Surface Mount Land Size :

--

Voltage - Rated :

350V

Polarization :

Polar

Mounting Type :

Through Hole

ESR (Equivalent Series Resistance) :

--

Moisture Sensitivity Level (MSL) :

--

Size / Dimension :

0.630 Dia (16.00mm)

Ripple Current @ High Frequency :

1A @ 100kHz

Max Operating Temperature :

105°C

RoHS Status :

RoHS Compliant

Applications :

GENERAL PURPOSE

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Polarity :

Polar

Leakage Current :

0.5085mA

Capacitance :

47μF

Tolerance :

20%

Height Seated (Max) :

33.5026mm

Dielectric Material :

ALUMINUM (WET)

Package / Case :

Radial

Min Operating Temperature :

-25°C

Diameter :

16mm

Pbfree Code :

yes
