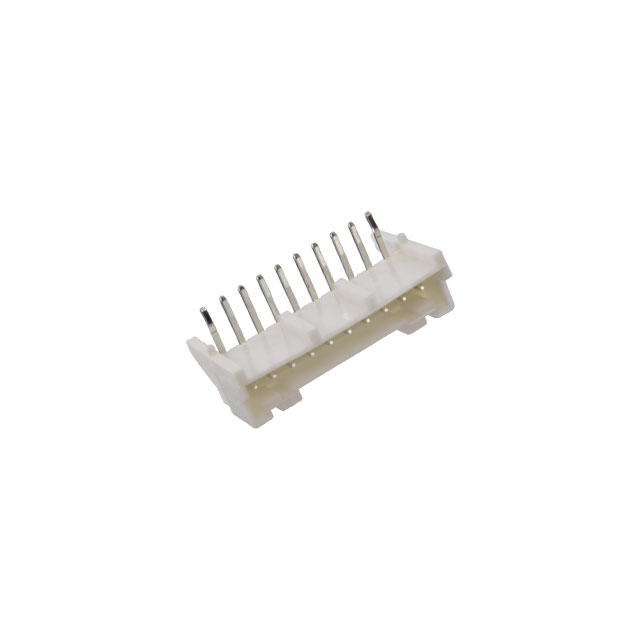

2SH-H-10-TR

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Voltage - Rated :

100VAC

Body Depth :

0.303 inch

PCB Contact Pattern :

RECTANGULAR

Series :

2SH

Number of Positions Loaded :

All

Pitch - Mating :

0.079 2.00mm

Insulation Material :

POLYBUTYLENE TEREPHTHALATE

Contact Material :

Brass

Mounting Type :

Through Hole, Right Angle

Number of Conductors :

ONE

Board Mounting Option :

PEG

Insulator Color :

White

Style :

Board to Board or Cable

Material Flammability Rating :

UL94 V-0

Polarization Key :

POLARIZED HOUSING

Contact Finish - Mating :

Tin

RoHS Status :

ROHS3 Compliant

Body Length or Diameter :

0.868 inch

Mating Contact Pitch :

0.079 inch

Fastening Type :

Locking Ramp

Dielectric Withstanding Voltage :

800VAC V

Rated Current (Signal) :

3A

Number of Rows :

1

Contact Length - Post :

0.134 3.40mm

Packaging :

Bulk

Body Breadth :

0.256 inch

Reliability :

COMMERCIAL

Feature :

Board Guide

Contact Resistance :

20mOhm

Termination :

Kinked Pin, Solder

Shrouding :

Shrouded - 4 Wall

Number Of PCB Rows :

1

Factory Lead Time :

10 Weeks

Terminal Pitch :

2.0066mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Shape :

Square

Contact Type :

Male Pin

Number of Positions :

10

Reference Standard :

UL, CSA

Connector Type :

Header

Operating Temperature :

-25°C~85°C
