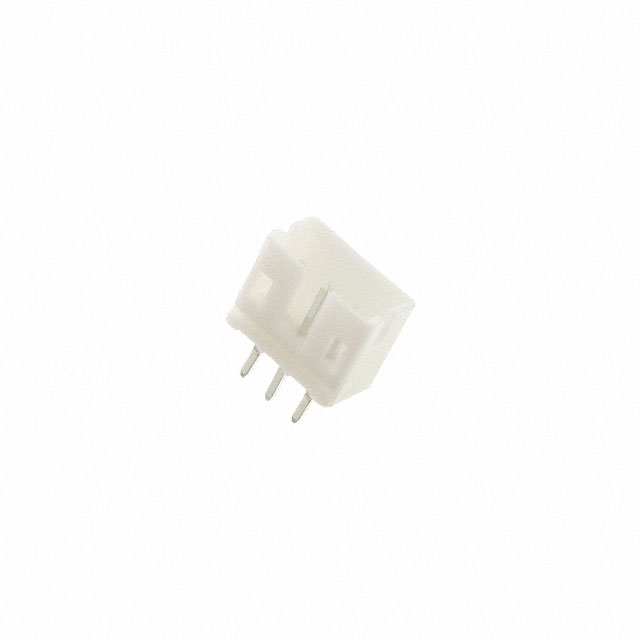

2SH-C-03-TS
Or copy the link below:
- Mfr.Part #
- 2SH-C-03-TS
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2MM
- Stock
- 10,526
- In Stock ：
- 10,526
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Terminal Pitch :
- 2.0066mm
- Number Of PCB Rows :
- 1
- Insulation Height :
- 0.240 6.10mm
- Contact Finish - Mating :
- Tin
- Insulation Color :
- White
- ECCN Code :
- EAR99
- Contact Type :
- Male Pin
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -25°C~85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Series :
- 2SH
- Contact Material :
- Brass
- Mounting Type :
- Through Hole
- Pitch - Mating :
- 0.079 2.00mm
- Contact Length - Post :
- 0.134 3.40mm
- PCB Contact Pattern :
- RECTANGULAR
- Voltage - Rated :
- 100VAC
- Termination :
- Kinked Pin, Solder
- Packaging :
- Bulk
- Number of Rows :
- 1
- Factory Lead Time :
- 9 Weeks
- Mounting Option 1 :
- LOCKING
- Current Rating (Amps) :
- 2A
- Polarization Key :
- POLARIZED HOUSING
- Number of Conductors :
- ONE
- Shrouding :
- Shrouded - 4 Wall
- Lead Free :
- Lead Free
- Style :
- Board to Cable/Wire
- Mating Contact Pitch :
- 0.079 inch
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- Reliability :
- COMMERCIAL
- Board Mounting Option :
- SOLDER HOLDING POSTS
- Number of Positions :
- 3
- Material Flammability Rating :
- UL94 V-0
- Body Depth :
- 0.26 inch
- Reference Standard :
- UL, CSA
- Additional Feature :
- RoHS Compliant
- Datasheets
- 2SH-C-03-TS
2SH-C-03-TS Documents
2SH Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 3-Position Board to Cable/Wire 0.240 6.10mm Height
2SH-C-03-TS Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the 2SH Series of products.Additionally, there are other features, such as ROHS COMPLIANT.There is no operating temperature for the device.
2SH-C-03-TS Features
2SH series
2SH-C-03-TS Applications
There are a lot of Adam Tech
2SH-C-03-TS Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
